| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

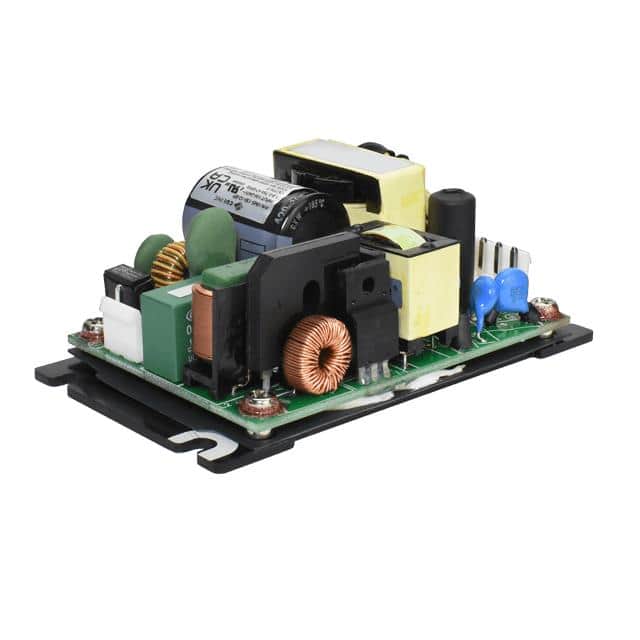

The CUI Inc. VMS-130-12-BP is an AC-DC power supply designed for various applications, including medical use. It operates within an 80-264 Vac input voltage range and offers a stable 12Vdc output with a maximum current of 10.8A.
This power supply delivers up to 130W of output power with forced air cooling (10 CFM) and 100W with natural convection. Key electrical specifications include high efficiency up to 93%, tight line and load regulation, and active PFC. The unit is built on a 2" x 3" open frame chassis, making it suitable for chassis mounting.
Safety and compliance are paramount, with IEC 60601-1 approval and Class I & Class II safety ratings. It also meets conducted and radiated emissions standards. The operating temperature range is -30°C to 70°C, with a storage temperature range of -40°C to 85°C.
80 to 264 Vac.
12 Vdc nominal, up to 10.8 A (130W with forced air).
-30°C to 70°C with derating.
Over voltage protection (13.5V) and short circuit protection with auto recovery, hiccup mode.
Open frame, chassis mount, supplied in tray packaging.
CE, cURus, UKCA. It is approved to medical standard 60601-1.
93% typical at 230 Vac, 25°C, 75% load.
