| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

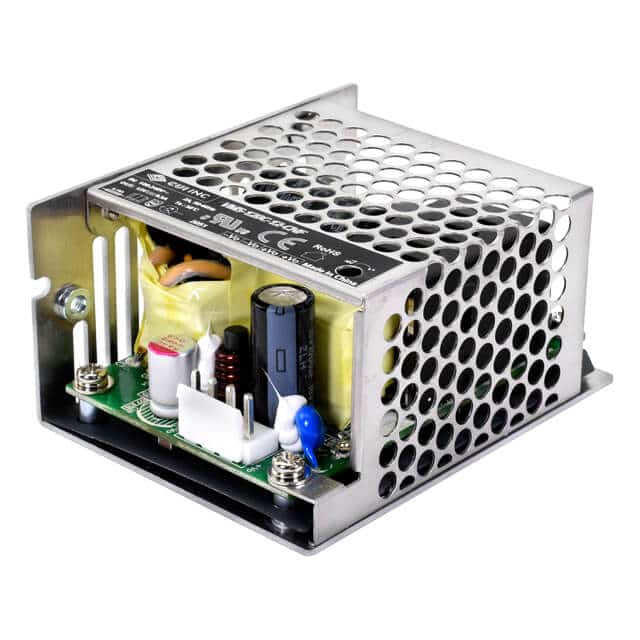

The CUI Inc. VMS-120C-15-CNF is a versatile AC-DC power supply designed for various applications. It provides a stable 15V output with a maximum current of 7.6A, delivering up to 114W of power. The unit accepts a wide universal input voltage range of 85 to 264 Vac, making it suitable for global use.
This enclosed power supply features chassis mounting for secure installation. It operates across a broad temperature range from -40°C to +85°C, with derating applied. Key electrical specifications include active power factor correction, high efficiency up to 94%, and low leakage current. Protections include over voltage, over current, over temperature, and short circuit.
Designed for reliability, the VMS-120C-15-CNF meets safety standards such as 60601, 60335, and 61558. It is suitable for safety class I or class II installations and offers adjustable output via a trim POT. Its compact dimensions (80.0mm x 62.0mm x 40.0mm) make it a practical choice for integration into various systems.
85-264 Vac or 120-370 Vdc.
15 Vdc.
7.6 A maximum.
94% at 230 Vac.
4 kV input-to-output.
-40 to +85°C with derating.
Enclosed, chassis mount.
