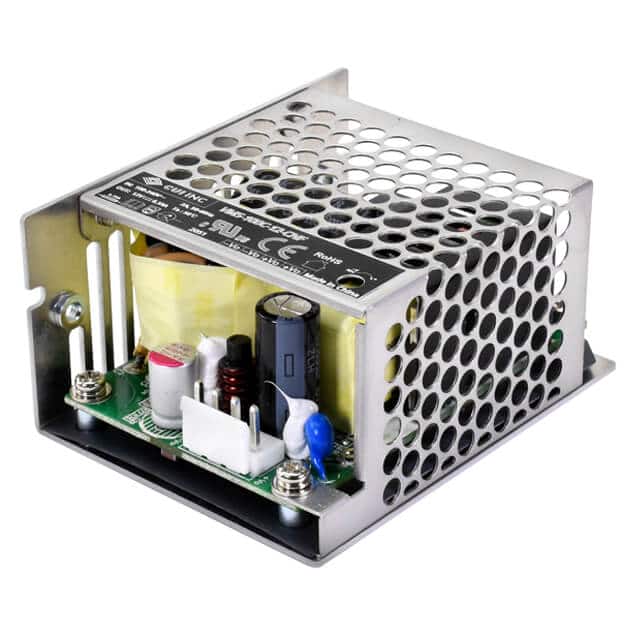

The CUI Inc. VMS-100C-24-CNF is a 100W AC-DC power supply designed for reliable power conversion. It offers a nominal output voltage of 24Vdc with a maximum output current of 4.16A.
This power supply features a universal input voltage range of 85-264 Vac and operates efficiently with a typical efficiency of 95% at 230 Vac. It includes active power factor correction and protections such as over-voltage, over-current, over-temperature, and short-circuit.
The VMS-100C-24-CNF is built with an enclosed chassis and is designed for chassis mounting, making it suitable for integration into various systems. Its wide operating temperature range of -40°C to +85°C (with derating) ensures performance in demanding environments. The unit also boasts low leakage current and low standby power consumption.
Certified to 60601, 60335, and 61558 safety standards, this power supply is suitable for applications in household appliances and medical equipment. It also supports safety class I or class II installations and offers adjustable output via a built-in trim pot.
The nominal output voltage is 24 Vdc, with a range of 22.8-25.2 Vdc.
The maximum output current is 4.16 A.
The nominal output power is 100W, with a transient output power of 125W.
The typical efficiency is 95%, measured at 230 Vac.
The power supply accepts a universal input voltage range of 85 to 264 Vac.
The operating temperature range is -40°C to +85°C, with derating.
This power supply features chassis mounting.
