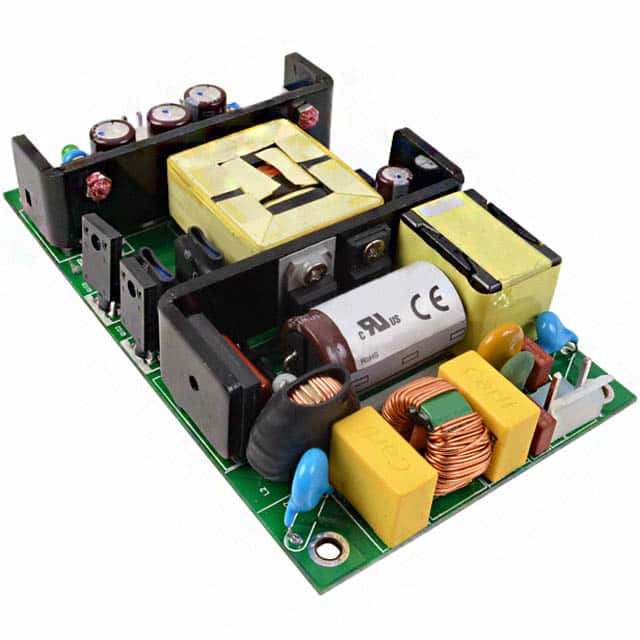

The CUI Inc. VMS-100-9 is an AC-DC power supply from the VMS-100 series, delivering up to 100W of continuous power with a single 9V output. It boasts an efficiency of 88% and features a universal input range of 90-264 Vac.
Designed with an industry-standard 3" x 5" footprint, this open-frame power supply is suitable for chassis mounting. Key features include built-in active PFC, remote sense function, and over-voltage and short-circuit protections. It also holds full medical approvals, making it suitable for medical applications.
With an operating temperature range of -20°C to 70°C and compliance with various safety and EMC standards, the VMS-100-9 is a versatile power solution. Its MTBF is rated at 200,000 hours at 25°C.
-20°C to +70°C with derating.
9 Vdc nominal.
90 to 264 Vac.
88%.
IEC 60601-1, EN 60601-1, UL 60601-1.
5,656 Vdc minimum.
200,000 hours at 25°C, 115 Vac per MIL-HDBK-217F.
