| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
625 pcs
|
625 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current - Saturation (ISAT) | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

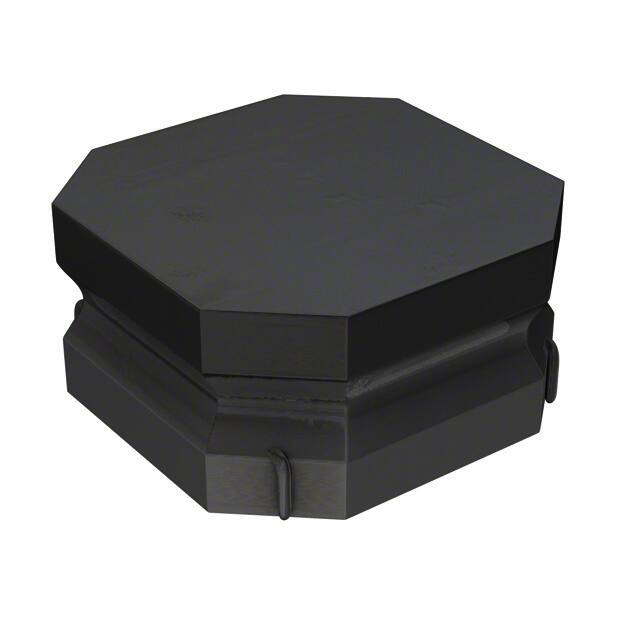

This TDK Corporation VLS3015T-4R7MR99 is a wirewound, shielded fixed inductor from the VLS3015 series. It offers an inductance value of 4.7 µH with a tolerance of ±20% and a maximum DC resistance of 136mOhm.
The inductor has a current rating of 990mA, with a saturation current (Isat) of 1A. It operates within a temperature range of -40°C to 105°C. The component features a compact size with dimensions of 3.00mm x 3.00mm and a height of 1.50mm, making it suitable for surface mounting.
This product is designed for power line applications and is compatible with lead-free soldering. Its magnetic shield construction aids in EMC protection. Applications include portable DC to DC converters, DVCs, DSCs, PDAs, LCD displays, cellular phones, and HDDs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 4.7 µH.
The tolerance is ±20%.
The maximum DC resistance is 136mOhm.
The current rating is 1A.
The dimensions are 3.00mm x 3.00mm with a height of 1.50mm.
The operating temperature range is -40°C to 105°C.
This part is RoHS3 Compliant.
