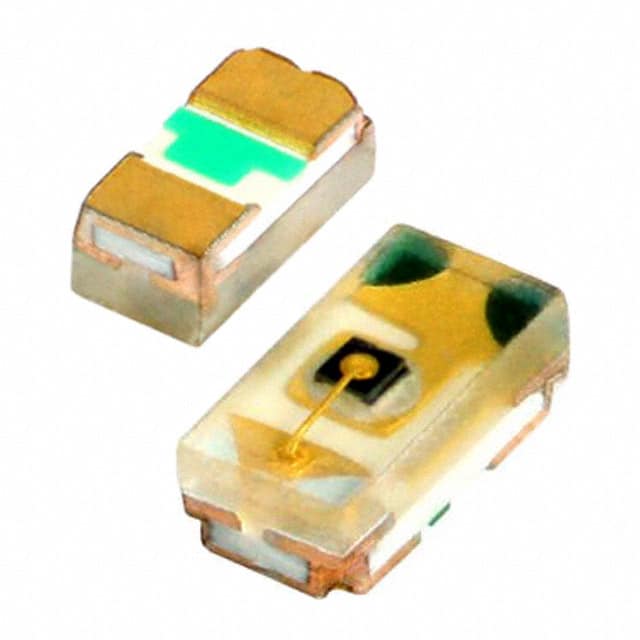

VLMG1500-GS08 The Vishay Dale VLMG1500-GS08 is a Yellow-Green LED in an 0402 SMD package. It offers a typical forward voltage of 2V and a luminous intensity of 35mcd at 20mA.
Mfr Part #:

VLMG1500-GS08

Available from 5 distributors
Mfr Name: Vishay
Vishay
The Vishay Dale VLMG1500-GS08 is a Yellow-Green LED in an 0402 SMD package. It offers a typical forward voltage of 2V and a luminous intensity of 35mcd at 20mA.
✓ Total Stock: 46,343 pcs
$ Price Range: $0.06

VLMG1500-GS08 Available from 5 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
39,809 pcs
On Request
39809 pcs On Request 1 On Request On Request On Request On Request On Request
Rayichip ✓
Non-Authorised Inventory information
6,000 pcs
On Request
6000 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
270 pcs
$0.26 ℹ
Qty Price
0+ 0.26
270 pcs $0.26
QtyPrice
0+ 0.26
1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
194 pcs
On Request
194 pcs On Request 1 On Request On Request On Request On Request On Request
Hybrid Electronics ✓
Non-Authorised Inventory information
70 pcs
On Request
70 pcs On Request 1 On Request On Request NO DC On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

VLMG1500-GS08 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Height
Height (Max)
Lens Size
Lens Style
Millicandela Rating
Mounting Type
Supplier Device Package
Supplier Package
Tape & Reel
Technology
Viewing Angle
Voltage
Wavelength
View Similar Products (0)

VLMG1500-GS08 Description

Short technical summary and product information.

The Vishay Dale VLMG1500-GS08 is an ultrabright 0402 ChipLED designed for high-brightness applications in a small SMD package. This LED features a yellow-green color with a typical wavelength of 571 nm and a luminous intensity of 35mcd at a forward current of 20mA. The typical forward voltage is 2.0V, with a maximum of 2.4V.



This component utilizes AlInGaP technology and has an exceptionally wide viewing angle of 130°. Its dimensions are 1.0mm L x 0.5mm W, with a maximum height of 0.55mm. The lens size is 1.00mm x 0.50mm, featuring a flat top rectangle style. The 0402 package is suitable for surface mounting and is compatible with IR reflow soldering.



Applications for this LED include backlighting keypads, navigation systems, cellular phone displays, and displays for industrial control systems. It is designed for reliability in demanding environments.

VLMG1500-GS08 Quick Information

Product Type: LED
Canonical Name: Vishay Dale VLMG1500-GS08 Yellow-Green LED
Subcategory: Indication - Discrete

VLMG1500-GS08 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

VLMG1500-GS08 Estimated Pricing

Qty Low High
1+ $0.06 $0.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

VLMG1500-GS08 Features

  • Ultrabright 0402 ChipLED with exceptional brightness.
  • Yellow-Green color with 571nm typical wavelength.
  • Wide 130° viewing angle for broad illumination.
  • Compact 1.0mm x 0.5mm x 0.35mm dimensions.
  • Compatible with IR reflow soldering processes.

VLMG1500-GS08 Applications

  • Ideal for keypad backlighting.
  • Suitable for navigation system displays.
  • Used in cellular phone displays.
  • Applicable for industrial control systems.
  • Enables miniaturized color effect designs.

VLMG1500-GS08 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the typical forward voltage for the Vishay Dale VLMG1500-GS08 LED?

The typical forward voltage for the VLMG1500-GS08 LED is 2.0V at 20mA.

What is the typical luminous intensity of the VLMG1500-GS08 LED?

The typical luminous intensity of the VLMG1500-GS08 LED is 35mcd at 20mA.

What is the viewing angle of the Vishay Dale VLMG1500-GS08 LED?

The VLMG1500-GS08 LED has a wide viewing angle of 130°.

What is the package type for the VLMG1500-GS08 LED?

The VLMG1500-GS08 LED is supplied in an 0402 SMD package.

What is the RoHS status of the VLMG1500-GS08 LED?

The VLMG1500-GS08 LED is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the VLMG1500-GS08 LED?

The Moisture Sensitivity Level (MSL) for the VLMG1500-GS08 LED is 1 Unlimited.
