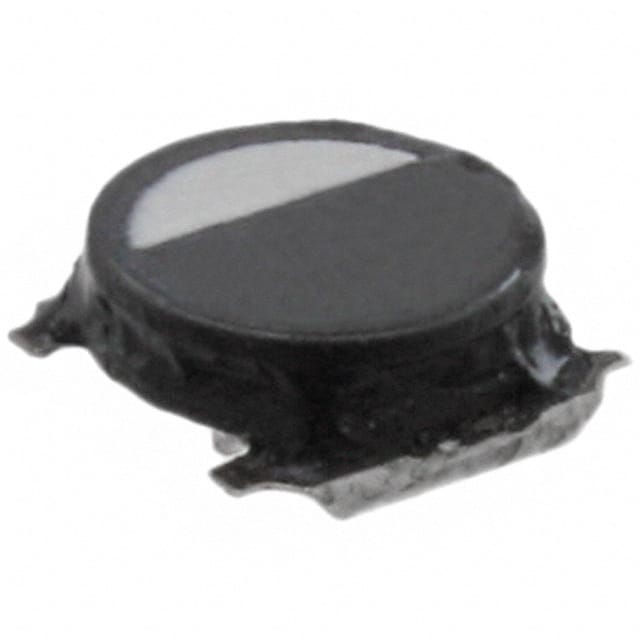

VLC5020T-2R2N The TDK Corporation VLC5020T-2R2N is a wirewound, shielded, fixed inductor with 2.2µH inductance and a 3A current rating. It is designed for surface mount applications.
Mfr Part #:

VLC5020T-2R2N

Available from 1 distributors
Mfr Name: TDK Corporation
TDK Corporation
The TDK Corporation VLC5020T-2R2N is a wirewound, shielded, fixed inductor with 2.2µH inductance and a 3A current rating. It is designed for surface mount applications.
✓ Total Stock: 6,000 pcs
$ Price Range: $0.52

VLC5020T-2R2N Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
6,000 pcs
On Request
6000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

VLC5020T-2R2N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Length
Mounting Type
Operating Temperature
Shielding
Tolerance
Type
Width
View Similar Products (0)

VLC5020T-2R2N Description

Short technical summary and product information.

The TDK Corporation VLC5020T-2R2N is a wirewound, shielded fixed inductor from the VLC5020 series. It offers an inductance value of 2.2µH with a tolerance of ±30% and a DC resistance (DCR) of 45mOhm maximum.



This component is rated for a current of 3A and operates within a temperature range of -40°C to 105°C. Its dimensions are 5.00mm x 5.00mm with a height of 2.00mm, making it suitable for surface mount applications.



The inductor is designed for power line applications, commonly used in DC to DC converters for portable electronic devices. Its construction provides magnetic shielding, contributing to reliable performance in compact designs.

VLC5020T-2R2N Quick Information

Product Type: Fixed Inductor
Series: VLC5020
Canonical Name: TDK Corporation VLC5020T-2R2N Wirewound Shielded Inductor
Subcategory: Fixed Inductor

VLC5020T-2R2N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

VLC5020T-2R2N Estimated Pricing

Qty Low High
1+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

VLC5020T-2R2N Features

  • Wirewound, shielded fixed inductor.
  • 2.2µH inductance with ±30% tolerance.
  • Rated for 3A current operation.
  • Compact 5x5x2mm surface mount package.
  • Wide operating temperature range.

VLC5020T-2R2N Applications

  • Ideal for DC to DC converters.
  • Suitable for portable electronic devices.
  • Used in power line filtering.
  • Compact design applications.

VLC5020T-2R2N FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the VLC5020T-2R2N?

The inductance of the VLC5020T-2R2N is 2.2 µH.

What is the current rating for the VLC5020T-2R2N?

The current rating for the VLC5020T-2R2N is 3 A.

What is the DC resistance (DCR) of this inductor?

The DC resistance (DCR) is 45mOhm maximum.

What is the operating temperature range for the VLC5020T-2R2N?

The operating temperature range is -40°C to 105°C.

What are the dimensions of the VLC5020T-2R2N?

The dimensions are 5.00mm x 5.00mm with a height of 2.00mm.

Is the VLC5020T-2R2N shielded?

Yes, the VLC5020T-2R2N is shielded.

What type of inductor is the VLC5020T-2R2N?

The VLC5020T-2R2N is a wirewound inductor.
