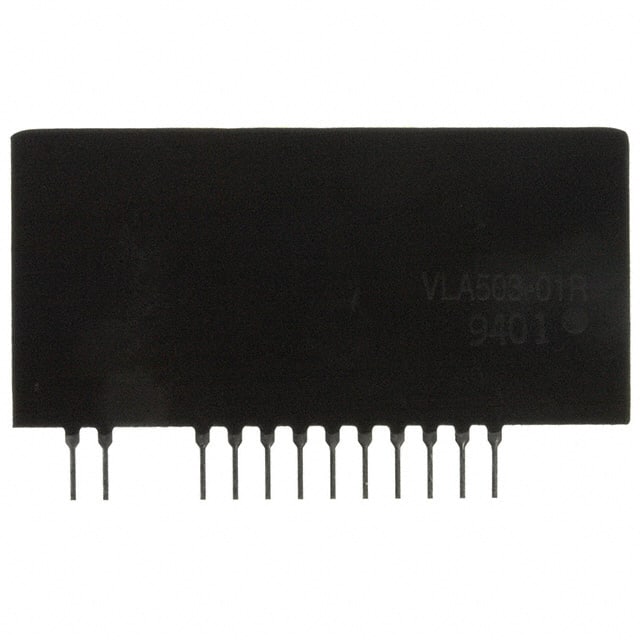

The VLA503-01 from Powerex Inc. is a hybrid integrated circuit specifically designed to provide optimal gate drive for IGBT modules. This device features high current, optically isolated gate drive capabilities, coupled with a large output voltage swing. It incorporates built-in short-circuit protection, utilizing desaturation detection for enhanced safety.
Key electrical specifications include an isolation voltage of 2500 Vrms for 1 minute, a recommended supply voltage range of 14V to 15V, and a negative supply voltage range of -7V to -10V. The driver supports a switching frequency up to 20 kHz and offers output currents of 5A. Propagation and rise/fall times are in the hundreds of nanoseconds.
Designed for applications such as inverter or AC servo systems, the VLA503-01 is suitable for driving 600V modules up to 600A or 1200V modules up to 400A. It is housed in a 12-SIP package and features a Through Hole mounting type, making it suitable for various industrial power electronics designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.01 | $2.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The isolation voltage is 2500 Vrms for 1 minute.
The operating temperature range is -20°C to 60°C.
The package type is 12-SIP.
Yes, it is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
The typical output current is 5A.
The maximum switching frequency is 20 kHz.
