VL0631510000G 6 position terminal block header with 3.81mm pitch, 2 levels, right angle orientation, through hole mounting, rated 300V and 10A.
Mfr Part #:

VL0631510000G

Available from 1 distributors
Mfr Name: Amphenol Anytek
Amphenol Anytek
6 position terminal block header with 3.81mm pitch, 2 levels, right angle orientation, through hole mounting, rated 300V and 10A.
✓ Total Stock: 1,835 pcs
$ Price Range: $0.76 - $2.24

VL0631510000G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
1,835 pcs
On Request
1835 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

VL0631510000G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Header Orientation
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
Tape & Reel
Termination Style
Type
Voltage
View Similar Products (0)

VL0631510000G Description

Short technical summary and product information.

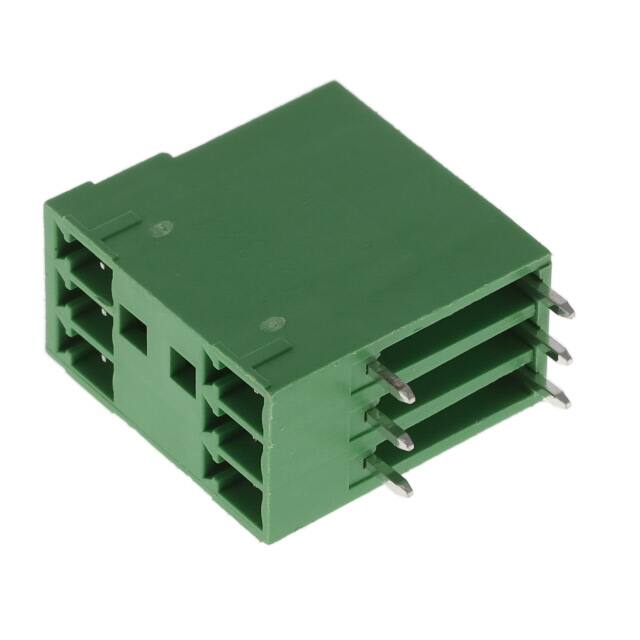

The VL0631510000G is a 6-position terminal block header from Amphenol Anytek, designed for use in industrial and commercial applications requiring reliable wire-to-board connections. This header features a 3.81mm (0.150") pitch, with 2 levels of 3 positions each, providing a compact solution for high-density wiring. The shrouded (4 side) design offers protection for the male pins and helps prevent misalignment during mating. The right-angle orientation allows for low-profile connections parallel to the PCB, making it suitable for space-constrained enclosures. The header is rated for 300V and 10A, with an operating temperature range of -40°C to 115°C. The through-hole mounting style ensures robust mechanical attachment to the PCB. Contact mating finish is tin, providing good conductivity and corrosion resistance. The green housing is a common color for terminal block components. This header is RoHS3 compliant and REACH unaffected, suitable for use in various industries including automation, power distribution, and control systems.

VL0631510000G Quick Information

Product Type: Terminal Block Header
Series: VL
Canonical Name: 6 Position Dual Level Terminal Block Header, Male Pins, Shrouded (4 Side), 3.81mm Pitch, Right Angle, Through Hole
Subcategory: Shrouded Header

VL0631510000G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

VL0631510000G Estimated Pricing

Qty Low High
1+ $2.24 $2.24
10+ $1.61 $1.61
25+ $1.41 $1.41
50+ $1.27 $1.27
100+ $1.19 $1.19
250+ $1.06 $1.06
500+ $0.98 $0.98
1,000+ $0.82 $0.82
2,500+ $0.76 $0.76

Estimated market price range - modelled values for guidance only, not live distributor offers.

VL0631510000G Features

  • 6 positions with 2 levels of 3 positions each.
  • 3.81mm pitch for compact board layouts.
  • Right angle through hole mounting.
  • Rated 300V and 10A.
  • Shrouded header with 4 side protection.

VL0631510000G Applications

  • Suitable for industrial control systems.
  • Ideal for power distribution boards.
  • Used in automation equipment wiring.
  • Applicable for sensor and actuator connections.

VL0631510000G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

6 positions, arranged in 2 levels of 3 positions each.

What is the pitch?

3.81mm (0.150 inches).

What is the current rating?

10A.

What is the voltage rating?

300V.

What is the mounting type?

Through hole, with right angle orientation.

What is the operating temperature range?

-40°C to 115°C.

What is the contact mating finish?

Tin.
