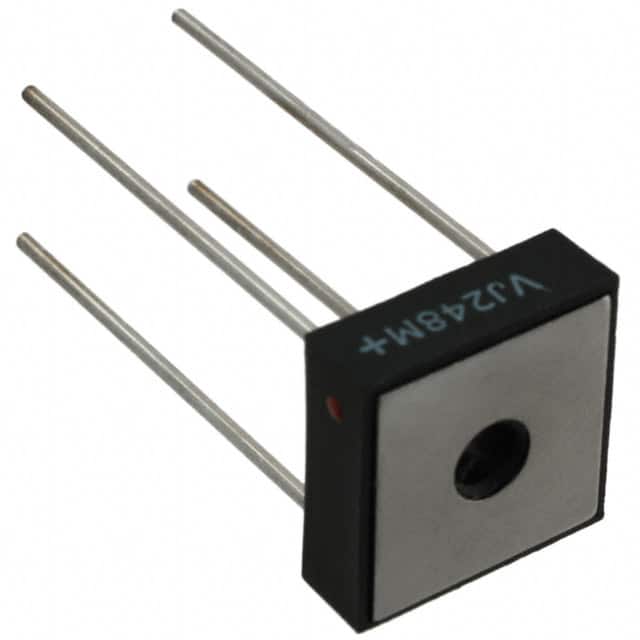

The VJ248M is a single phase bridge rectifier manufactured by Microsemi Corporation. It is designed for converting alternating current (AC) to direct current (DC) in power supply applications. The device features a peak reverse voltage (VRRM) of 200V and an average rectified current (Io) of 10A, making it suitable for medium-power rectification needs.
The rectifier utilizes standard technology with glass passivated die for reliability. Electrical characteristics include a maximum forward voltage of 1.3V at 1A, a reverse leakage current of 5µA at rated VRRM, and a surge current capability of 100A (8.3ms half sine). The I²t rating for fusing is 41 A²s. The device also offers 2000V isolation voltage for enhanced safety.
The VJ248M is housed in a 4-Square VJ package with through-hole mounting. It has an operating junction temperature range of -55°C to 175°C and a thermal resistance (junction to case) of 3°C/W. The typical weight is 4.5 grams. Mounting torque is specified at 12-15 in-lb for a #6 screw.
This bridge rectifier is suitable for general purpose AC to DC conversion in industrial and commercial equipment, power supplies, and other applications requiring reliable rectification in a through-hole package.
200V.
10A.
Maximum 1.3V at 1A forward current.
100A (8.3ms half sine).
2000V.
-55°C to 175°C.
4-Square VJ package with through-hole mounting.
