| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,448 pcs
|
4448 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
90 pcs
|
90 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| AEC-Q200 | |
| Automotive Grade | |
| Capacitance @ Frequency | |
| Current | |
| Energy | |
| Industrial Grade | |
| Maximum AC Volts | |
| Maximum DC Volts | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Response Time | |
| Standard Package Qty | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Varistor Voltage (Max) | |
| Varistor Voltage (Min) | |
| Varistor Voltage (Min/Typ/Max) | |
| Varistor Voltage (Typ) | |
| Varistor Voltage Tolerance |

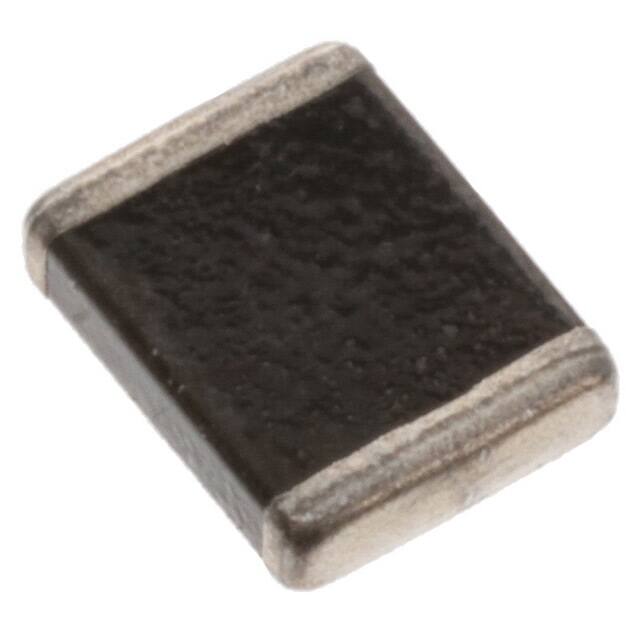

The Kyocera AVX VJ15MA0340KBA is a surface-mount multilayer varistor (MLV) from the automotive MA series. It provides transient voltage suppression and ESD protection for electronic circuits. The varistor voltage is 47V (minimum 42.3V, maximum 51.7V) with a tolerance of ±10%. It is rated for a maximum AC voltage of 30V and a maximum DC voltage of 34V. The device can absorb 10J of energy and handle a peak surge current of 1.2kA. Capacitance at 1 kHz is 4000 pF. The response time is less than 1 ns. The part is housed in a 2220 (5750 Metric) package with plated Ni/Sn100% terminations and is supplied on tape and reel with a standard quantity of 1250 pieces. It is RoHS compliant and AEC-Q200 qualified for automotive applications. Operating temperature range is -55°C to 125°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.02 | $2.02 |
| 10+ | $1.48 | $1.48 |
| 25+ | $1.35 | $1.35 |
| 100+ | $1.20 | $1.20 |
| 250+ | $1.16 | $1.16 |
| 500+ | $1.13 | $1.13 |
| 1,250+ | $0.95 | $0.95 |
| 2,500+ | $0.93 | $0.93 |
| 5,000+ | $0.92 | $0.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The varistor voltage is 47V typical, with a minimum of 42.3V and maximum of 51.7V.
Maximum AC voltage is 30V, maximum DC voltage is 34V.
Energy rating is 10J, peak surge current is 1.2kA.
It comes in a 2220 (5750 Metric) surface-mount package.
Yes, it is AEC-Q200 compliant for automotive applications.
Operating temperature range is -55°C to 125°C.
Capacitance at 1 kHz is 4000 pF.
