Mfr Part #:

VIZ0005

Mfr Name: Vicor

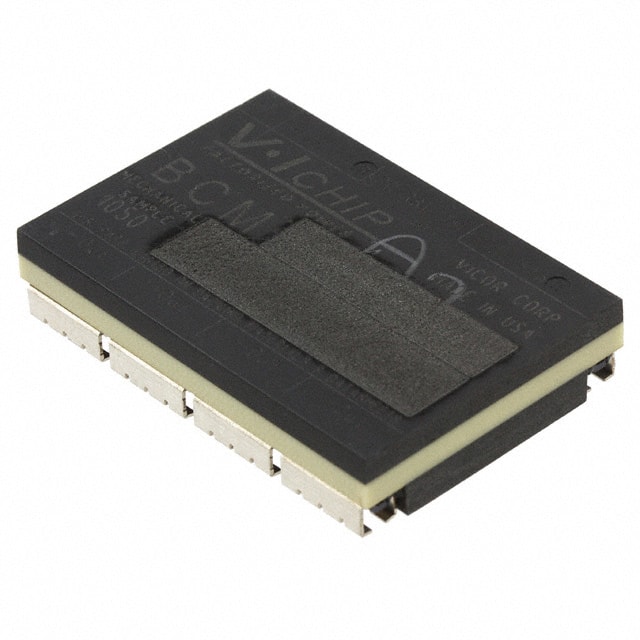

The Vicor VIZ0005 is a mechanical sample accessory designed for board mounting. It features 7 terminations and a bright tin/lead terminal finish.

Stock on Request

VIZ0005 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Accessories
Manufacturer Name	Vicor
Accessory Type	Mechanical Sample
Mounting Type	Surface Mount
Number of Terminations	7

View Similar Products (0)

VIZ0005 Description

Short technical summary and product information.

The Vicor VIZ0005 is classified as a Mechanical Sample accessory within the Power Supplies - Board Mount category. This component is designed for surface mounting and features 7 terminations with a bright tin/lead terminal finish.

As a mechanical sample, the VIZ0005 is intended for evaluation and prototyping purposes. Its specifications include a surface mount design, making it suitable for integration into various electronic assemblies. The terminal finish ensures reliable connectivity.

This accessory is part of Vicor's offerings in the power supply domain, providing essential components for system design and development. The VIZ0005 is identified by its part number VIZ0005 and also by the distributor part number 1102-1035-ND.

VIZ0005 Quick Information

Product Type: Accessory

Canonical Name: Vicor VIZ0005 Mechanical Sample

Subcategory: Mechanical Sample

VIZ0005 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

VIZ0005 Features

Surface mount design for compact assemblies.
7 terminations with Bright Tin/Lead finish.
RoHS3 compliant with REACH unaffected status.
MSL 1 Unlimited moisture sensitivity level.
Factory lead time of 16 weeks.

VIZ0005 Applications

Used for prototyping power supplies.
Suitable for board-level integration.
Evaluation of mechanical fit.

VIZ0005 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the Vicor VIZ0005 accessory type?

The Vicor VIZ0005 is a Mechanical Sample.

How many terminations does the VIZ0005 have?

The VIZ0005 has 7 terminations.

What is the terminal finish on the Vicor VIZ0005?

The terminal finish is Bright Tin/Lead (Sn/Pb).

What is the factory lead time for the VIZ0005?

The factory lead time is 16 weeks.

Is the Vicor VIZ0005 RoHS compliant?

The VIZ0005 is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for VIZ0005?

The MSL is 1 Unlimited.

What is the REACH status for the VIZ0005?

The REACH status is Unaffected.

VIZ0005 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.

View All Alternate Parts

VIZ0006

Vicor

The Vicor VIZ0006 is a mechanical sample accessory designed for board mounting. It operates within a voltage range of 3V to 30V and a temperature range of -20°C to 100°C.

View Part
