| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Features | |
| Fault Protection | |
| Frequency | |
| Internal Switch(s) | |
| Mounting Type | |
| Operating Temperature | |
| Output Isolation | |
| Power (Watts) | |
| Supplier Device Package | |
| Topology | |
| Voltage |

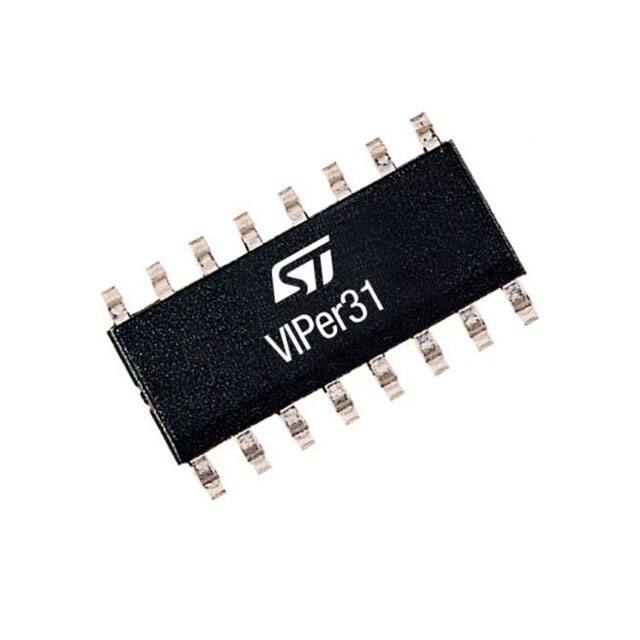

The STMicroelectronics VIPER319LDTR is an integrated circuit belonging to the AC DC Converters, Offline Switches category. It is designed for power management applications and features an internal switch.
Key electrical specifications include a breakdown voltage of 800V, a supply voltage range of 4.5V to 30V, and a switching frequency of 60kHz. The device offers a power output of 1W and includes fault protection for overload, over temperature, over voltage, and short circuit conditions. It also incorporates a soft start control feature.
This component utilizes a Boost, Buck, Buck-Boost, or Flyback topology and provides non-isolated output. It is housed in a 16-SOIC package suitable for surface mount applications and operates within an extended temperature range of -40°C to 150°C.
The VIPER319LDTR is RoHS3 compliant, REACH unaffected, and has an MSL of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 4.5V to 30V.
The breakdown voltage is 800V.
The switching frequency is 60kHz.
The power output is 1W.
The operating temperature range is -40°C to 150°C.
It includes protection for Over Load, Over Temperature, Over Voltage, and Short Circuit.
It is available in a 16-SOIC (0.154", 3.90mm Width) package suitable for surface mounting.
