| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,500 pcs
|
5500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Duty Cycle | |
| Fault Protection | |
| Frequency | |
| Internal Switch(s) | |
| Mounting Type | |
| Operating Temperature | |
| Output Isolation | |
| Power (Watts) | |
| SVHC Present | |
| Supplier Device Package | |
| Supplier Package | |
| Topology | |
| Voltage |

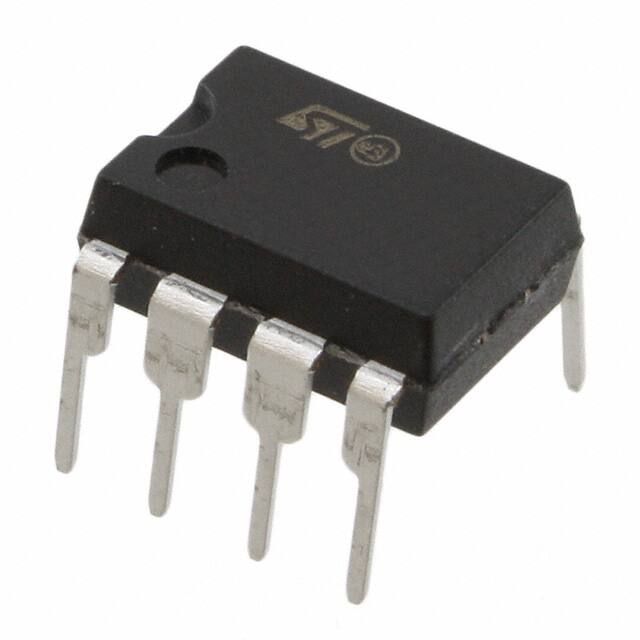

The STMicroelectronics VIPER06XN is an integrated circuit designed for AC DC conversion, functioning as an offline switch. It supports a wide operating voltage range from 11.5V to 23.5V and can deliver up to 8W of power.
This IC features a duty cycle of 70% and operates at a frequency of 30kHz. It includes internal switches and offers fault protection mechanisms such as current limiting, open loop, and over-temperature protection. The output isolation can be either type.
Designed for through-hole mounting, the VIPER06XN comes in an 8-DIP package with 7 leads. Its operating temperature range is from -40°C to 150°C (TJ).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 11.5V to 23.5V.
The operating junction temperature range is -40°C to 150°C.
The VIPER06XN comes in an 8-DIP (0.300", 7.62mm) package with 7 leads, for through-hole mounting.
The switching frequency is 30kHz.
The output power rating is 8W.
It supports buck and flyback topologies.
The device includes current limiting, open loop, and over-temperature protection.
