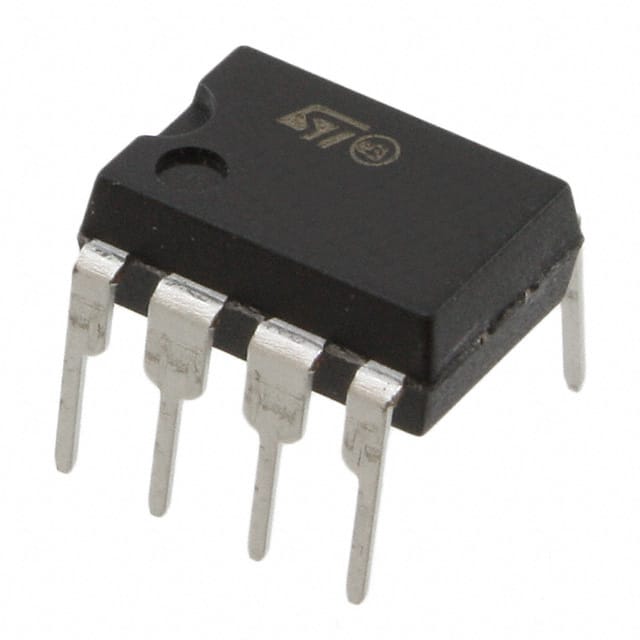

VIPER06HN The STMicroelectronics VIPER06HN is an AC-DC converter designed for offline switching applications. It features a wide input voltage range and operates at 115kHz.
Mfr Part #:

VIPER06HN

Available from 4 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics VIPER06HN is an AC-DC converter designed for offline switching applications. It features a wide input voltage range and operates at 115kHz.
✓ Total Stock: 12,655 pcs
$ Price Range: $0.75

VIPER06HN Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

VIPER06HN Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Duty Cycle
Fault Protection
Frequency
Internal Switch(s)
Lead Style
Mounting Type
Operating Temperature
Output Isolation
Power (Watts)
SVHC Present
Supplier Device Package
Tape & Reel
Topology
Voltage
View Similar Products (0)

VIPER06HN Description

Short technical summary and product information.

The STMicroelectronics VIPER06HN is an AC-DC converter belonging to the Offline Switches category. It is designed for applications requiring efficient power conversion.



Key electrical specifications include an operating voltage range of 11.5V to 23.5V and a power output of 8W. The device operates at a frequency of 115kHz with a 70% duty cycle. It supports both Buck and Flyback topologies and offers either output isolation.



For thermal management, the VIPER06HN operates within a temperature range of -40°C to 150°C (TJ). It includes fault protection features such as current limiting, open loop, and over-temperature protection. The component has an internal switch and is supplied in a 7-DIP package.



This component is mounted using the Through Hole method, making it suitable for various PCB designs. Environmental compliance data, including RoHS, REACH, and MSL status, is pending verification.

VIPER06HN Quick Information

Product Type: AC-DC Converter
Series: VIPER06
Canonical Name: VIPER06HN AC-DC Converter
Subcategory: Offline Switches

VIPER06HN Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

VIPER06HN Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

VIPER06HN Features

  • AC-DC converter with 8W power rating.
  • Wide input voltage range of 11.5V to 23.5V.
  • Operates at 115kHz with 70% duty cycle.
  • Supports Buck and Flyback topologies.
  • Through Hole mounting for easy integration.

VIPER06HN Applications

  • Suitable for offline power supplies.
  • Used in power management circuits.
  • Ideal for compact electronic devices.
  • Applications requiring voltage conversion.

VIPER06HN FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of VIPER06HN?

11.5V to 23.5V.

What is the switching frequency of VIPER06HN?

115kHz.

What is the maximum power output of VIPER06HN?

8W.

What topologies does VIPER06HN support?

Buck and Flyback.

What is the operating temperature range of VIPER06HN?

-40°C to 150°C (junction).

What package is VIPER06HN available in?

7-DIP (through-hole).

What fault protections are included?

Current limiting, open loop, and over temperature protection.
