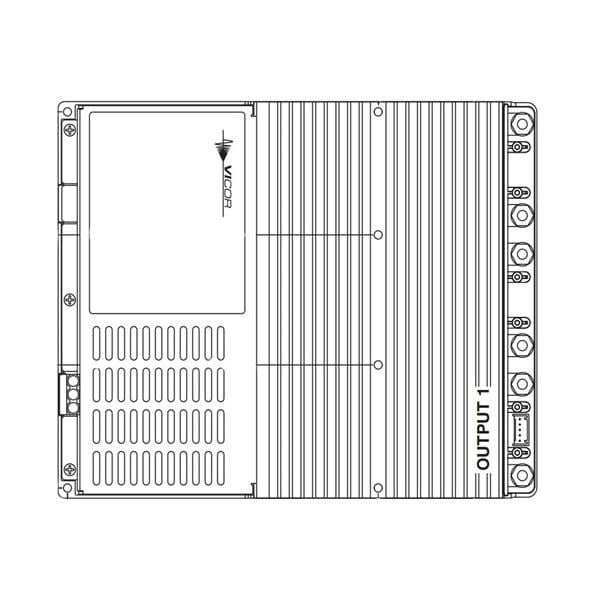

VI-QU01-EQU The Vicor VI-QU01-EQU is an enclosed AC-DC switcher with dual outputs of 5V and 12V, delivering up to 400W of power. It features autoranging input voltage from 90 to 264 VAC.
Mfr Part #:

VI-QU01-EQU

Mfr Name: Vicor
Vicor
The Vicor VI-QU01-EQU is an enclosed AC-DC switcher with dual outputs of 5V and 12V, delivering up to 400W of power. It features autoranging input voltage from 90 to 264 VAC.
Stock on Request

VI-QU01-EQU Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Efficiency
Height
Input Frequency
Input Voltage
Length
Mounting Style
Number of Outputs
Operating Temperature Range
Output Power
Width
View Similar Products (0)

VI-QU01-EQU Description

Short technical summary and product information.

The Vicor VI-QU01-EQU is a FlatPAC autoranging AC-DC switcher designed for industrial applications. This enclosed unit provides two output channels, one at 5 VDC and another at 12 VDC, with a combined output power capability of 200W to 400W. It accepts a wide input voltage range of 90 VAC to 132 VAC and 180 VAC to 264 VAC, with an input frequency range of 47 Hz to 63 Hz.



With a width of 124.5 mm, height of 34.8 mm, and length of 234.8 mm, the VI-QU01-EQU is designed for chassis mounting. It offers a regulated load, an isolation voltage of 4.242 kV, and operates within a temperature range of 0 C to +85 C. The efficiency of this AC-DC converter ranges from 78% to 88%.



This model is approved by CE, CSA, cTUVus, cURus, EN, FCC, IEC60950-1, and UL60950-1, indicating its compliance with various safety and performance standards for industrial use.

VI-QU01-EQU Quick Information

Product Type: AC DC Converter
Canonical Name: Vicor VI-QU01-EQU FlatPAC Autoranging AC-DC Switcher

VI-QU01-EQU Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

VI-QU01-EQU Features

  • Autoranging AC-DC switcher with dual outputs.
  • Provides 5 VDC and 12 VDC output voltages.
  • Delivers 200 W to 400 W total output power.
  • Wide input voltage range of 90-264 VAC.
  • Enclosed chassis mount design for industrial use.

VI-QU01-EQU Applications

  • Suitable for industrial power applications.
  • Ideal for systems requiring dual voltage rails.
  • Used in equipment with wide AC input needs.
  • Designed for reliable operation in harsh environments.

VI-QU01-EQU FAQs

6 frequently asked questions generated from this part’s specifications.
What are the output voltages for the Vicor VI-QU01-EQU?

The Vicor VI-QU01-EQU has two output channels: one at 5 VDC and another at 12 VDC.

What is the total output power of the VI-QU01-EQU?

The VI-QU01-EQU offers an output power of 200 W to 400 W.

What is the input voltage range for this AC-DC converter?

The input voltage range for the VI-QU01-EQU is 90 VAC to 132 VAC and 180 VAC to 264 VAC.

What is the operating temperature range for the Vicor VI-QU01-EQU?

The operating temperature range is from 0 C to +85 C.

What type of mounting does the VI-QU01-EQU use?

The VI-QU01-EQU uses chassis mounting.

What are the key approvals for the Vicor VI-QU01-EQU?

Key approvals include CE, CSA, cTUVus, cURus, EN, FCC, IEC60950-1, and UL60950-1.
