| Category | |
| Manufacturer Name | |
| Efficiency | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Style | |
| Number of Outputs | |
| Operating Temperature Range | |
| Output Power | |
| SVHC Present | |
| Width |

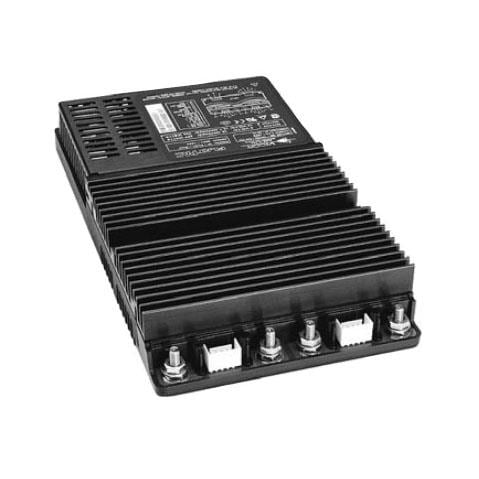

The Vicor VI-PU01-IUU is an industrial-grade AC-DC converter from the FlatPAC series, designed for reliable power conversion. This autoranging switcher delivers a total output power of 200W, with dedicated outputs of 5VDC and 12VDC.
It operates with a wide input voltage range of 90 VAC to 264 VAC and an input frequency of 47 Hz to 440 Hz. The unit boasts an efficiency between 80% and 90%. Its mechanical dimensions are 124.5 mm in width, 34.8 mm in height, and 234.8 mm in length, with a chassis mounting style.
The VI-PU01-IUU is enclosed and features regulated load regulation. It has an isolation voltage of 4.242 kV and an operating temperature range from -30 C to +85 C. Approvals include CE, CSA, cTUVus, cURus, EN, FCC, IEC60950-1, and UL60950-1, indicating its suitability for various industrial applications.
This AC-DC converter is designed for demanding industrial environments requiring stable and efficient power. Its robust construction and comprehensive approvals make it a dependable choice for power supply solutions.
90-132 VAC and 180-264 VAC at 47-440 Hz.
5 VDC on channel 1 and 12 VDC on channel 2.
200 W.
4.242 kV.
-30°C to +85°C.
Chassis mount, enclosed package.
80% to 90%.
