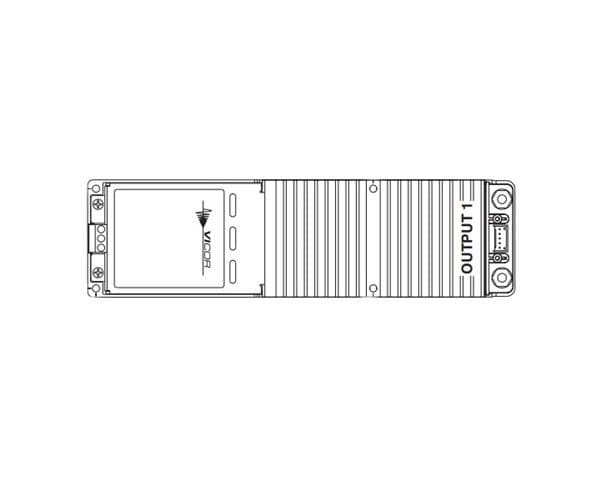

VI-LUM-EV-CC The Vicor VI-LUM-EV-CC is an enclosed AC-DC converter with 150W output power and a 10V output voltage. It features autoranging input voltage from 90-264VAC.
Mfr Part #:

VI-LUM-EV-CC

Mfr Name: Vicor
Vicor
The Vicor VI-LUM-EV-CC is an enclosed AC-DC converter with 150W output power and a 10V output voltage. It features autoranging input voltage from 90-264VAC.
Stock on Request

VI-LUM-EV-CC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Compliance
Efficiency
Height
Input Frequency
Input Voltage
Length
Mounting Style
Number of Outputs
Operating Temperature Range
Output
Output Power
Width
View Similar Products (0)

VI-LUM-EV-CC Description

Short technical summary and product information.

The Vicor VI-LUM-EV-CC is a FlatPAC autoranging AC-DC switcher designed for industrial applications. This enclosed unit provides a regulated 10VDC output with a maximum output power of 150W.



It operates with a wide input voltage range of 90-264VAC and an input frequency of 47-63Hz. The power supply offers an efficiency range of 78% to 88% and features an isolation voltage of 4.242kVDC.



With dimensions of 124.5mm width, 34.8mm height, and 234.8mm length, it is designed for chassis mounting. The operating temperature range is from 0°C to +85°C.



Key specifications include a load regulation of regulated, and it holds multiple industry approvals such as CE, CSA, EN, cTUVus, cURus, FCC, IEC60950-1, and UL60950-1.

VI-LUM-EV-CC Quick Information

Product Type: AC DC Converter
Series: FlatPAC
Canonical Name: Vicor VI-LUM-EV-CC FlatPAC Autoranging AC-DC Switcher
Subcategory: Switching Power Supplies

VI-LUM-EV-CC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

VI-LUM-EV-CC Features

  • 150W output power capacity.
  • 10VDC single output voltage.
  • Autoranging 90-264VAC input.
  • Enclosed chassis mount design.
  • Wide 0°C to +85°C operating temperature.

VI-LUM-EV-CC Applications

  • Suitable for industrial power systems.
  • Used in equipment requiring 10VDC.
  • Designed for regulated power needs.
  • Applications needing wide AC input.

VI-LUM-EV-CC FAQs

5 frequently asked questions generated from this part’s specifications.
What is the output voltage of the Vicor VI-LUM-EV-CC?

The output voltage for Channel 1 is 10 VDC.

What is the maximum output power of the VI-LUM-EV-CC?

The maximum output power is 150 W.

What is the input voltage range for the Vicor VI-LUM-EV-CC?

The input voltage range is 90 VAC to 132 VAC and 180 VAC to 264 VAC.

What is the operating temperature range for this AC-DC converter?

The operating temperature range is 0 C to +85 C.

What mounting style is used for the Vicor VI-LUM-EV-CC?

The mounting style is Chassis.
