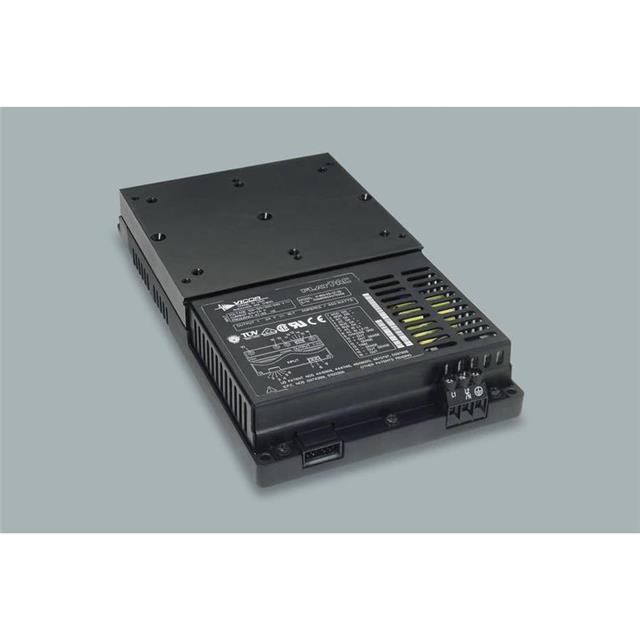

The Vicor VI-LU3-IV is an enclosed AC/DC converter designed for various applications. It provides a single 24V output with a maximum current of 6.25A, delivering up to 150W of power.
This converter operates with a universal input voltage range, accepting either 90-132 VAC or 180-264 VAC. It boasts a typical efficiency of 90% and offers features such as adjustable output and remote sense capabilities. The isolation voltage is rated at 4.242 kV.
Designed for robust performance, the VI-LU3-IV has an operating temperature range of -30°C to 85°C. Its dimensions are 9.25" L x 4.90" W x 1.37" H, and it is suitable for chassis mounting.
This model complies with the 60950-1 standard. Please note that it is RoHS non-compliant.
The VI-LU3-IV provides a 24V output at 6.25A, delivering 150W of power.
Yes, it accepts a universal input voltage range of 90-132 VAC and 180-264 VAC.
The module features an isolation voltage of 4.242 kV between input and output.
The unit is supplied in bulk packaging and utilizes a chassis mount type.
The converter operates reliably within an ambient temperature range of -30°C to 85°C.
The device complies with the IEC 60950-1 safety standard.
