Mfr Part #:

VI-HAM-EL

Mfr Name: Vicor

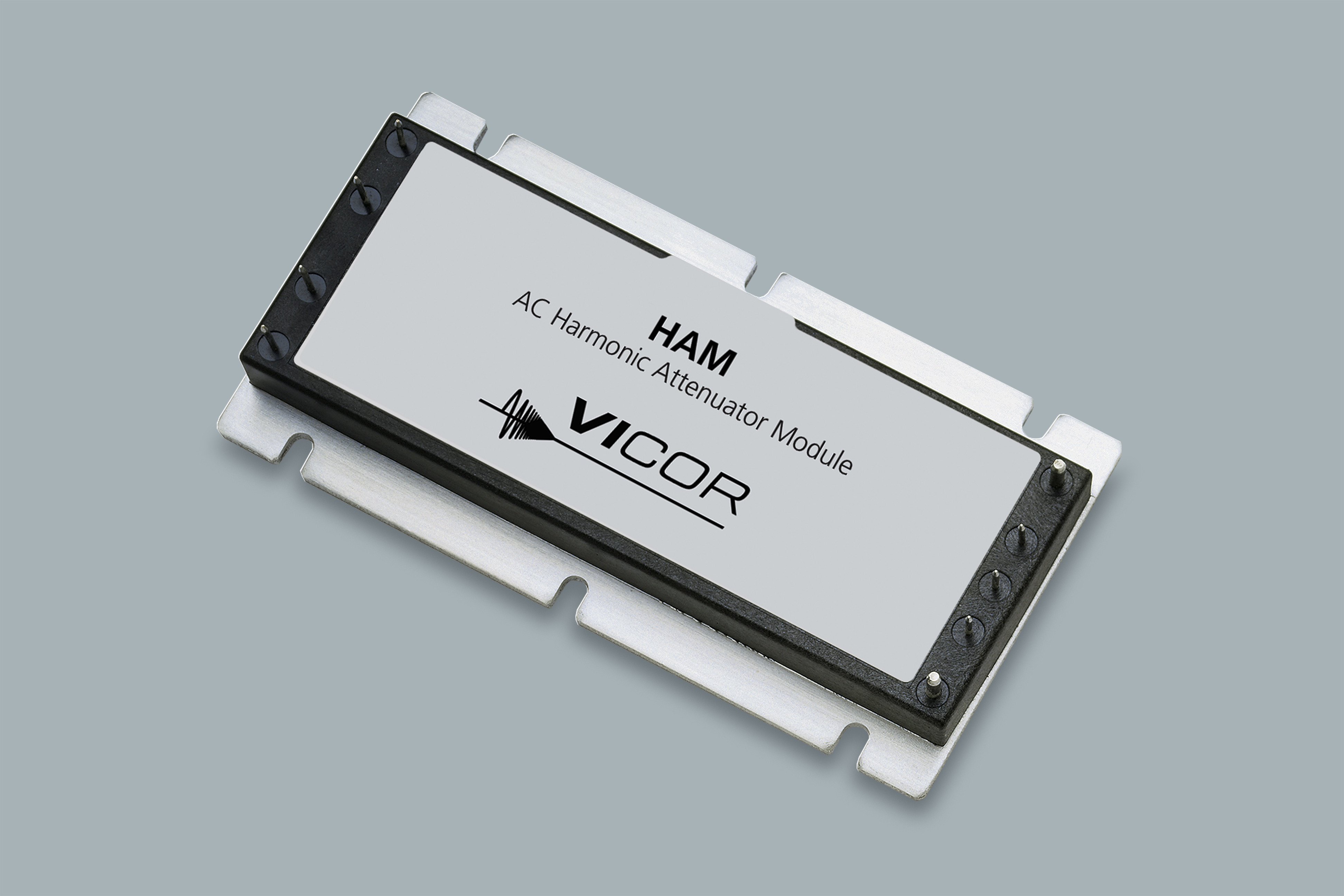

The Vicor VI-HAM-EL is an AC Harmonic Attenuator Module designed for high-density power supplies. It offers up to 675W of power.

Stock on Request

VI-HAM-EL Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Accessories
Manufacturer Name	Vicor
Industrial Grade	Yes
Lead Style	Pin
Output Power	675W
Package / Case	HAM
SVHC Present	Not Present

View Similar Products (0)

VI-HAM-EL Description

Short technical summary and product information.

The Vicor VI-HAM-EL is an AC Harmonic Attenuator Module (HAM) that functions as a full-wave rectifier with a proprietary high-frequency Zero-Current Switching (ZCS) boost converter. It provides up to 675W of power in a compact package measuring 4.6 x 2.4 x 0.5 inches. This module, when combined with Vicor's V375, VI-26x, or VI-J6x DC-DC converters, forms the powertrain for a high-density switching power supply. It meets EN61000-3-2 requirements for harmonic current content, achieving a power factor better than 0.99.

Available in various product grades, the VI-HAM-EL offers different operating temperature ranges, including -10°C to +85°C, -25°C to +85°C, and -40°C to +85°C. The HAM module is designed to enhance power supply efficiency and harmonic performance in demanding applications.

VI-HAM-EL Quick Information

Product Type: AC Harmonic Attenuator Module

Series: HAM

Canonical Name: Vicor VI-HAM-EL AC Harmonic Attenuator Module

Subcategory: Harmonic Attenuator Module

VI-HAM-EL Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

VI-HAM-EL Features

Provides up to 675W of output power.
Meets EN61000-3-2 harmonic current requirements.
Achieves a power factor better than 0.99.
Compact package size: 4.6 x 2.4 x 0.5 inches.
Available in multiple operating temperature grades.

VI-HAM-EL Applications

Used in high-density switching power supplies.
Enhances power factor in AC-DC converters.
Reduces harmonic distortion in power systems.
Suitable for demanding industrial applications.

VI-HAM-EL FAQs

5 frequently asked questions generated from this part’s specifications.

What is the output power of the Vicor VI-HAM-EL?

The Vicor VI-HAM-EL provides up to 675W of output power.

What is the operating temperature range for the VI-HAM-EL?

The VI-HAM-EL is available in product grades with operating temperature ranges of -10°C to +85°C, -25°C to +85°C, and -40°C to +85°C.

Does the VI-HAM-EL meet EN61000-3-2 requirements?

Yes, the VI-HAM-EL, when combined with specific DC-DC converters, provides a powertrain that meets EN61000-3-2 requirements for harmonic current content.

What is the power factor of the VI-HAM-EL system?

The combination of the High-Boost HAM and compatible DC-DC converters provides a power factor better than 0.99.

Is the Vicor VI-HAM-EL RoHS compliant?

No, the RoHS compliant status for the VI-HAM-EL is listed as 'No'.
