| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

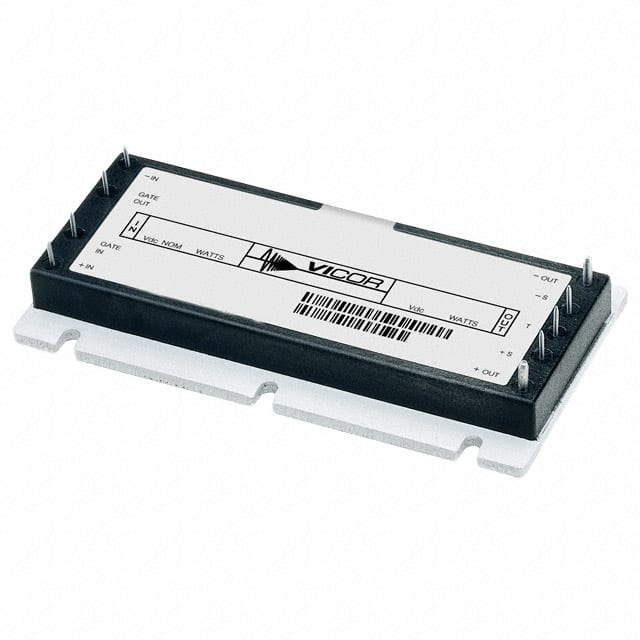

Vicor VI-260-EU is an isolated DC-DC converter from the VI-200 series, designed to deliver 200W of output power with a single 5V output at 40A. The converter operates from a wide input voltage range of 200V to 400V (nominal 300V) and achieves typical efficiency of 88% at nominal line and 75% load. It employs zero-current-switching (ZCS) architecture with a switching frequency up to 2MHz, enabling high power density up to 50 W/in³.
The converter integrates comprehensive protection features including overcurrent (OCP), overtemperature (OTP), overvoltage (OVP), and short-circuit (SCP) protection. Additional features include remote sense, current limit, thermal shutdown, and logic disable. The VI-260-EU is housed in a full brick package (4.60" x 2.40" x 0.50") with through-hole mounting, suitable for commercial ITE applications.
Operating temperature range is -10°C to 85°C. The module carries cURus, cTÜVus, and CE Mark approvals. Note: As per the datasheet, the VI-200 series is non-RoHS compliant; the RoHS-compliant variant is the VE-200 series.
5V
40A
200V to 400V, with a nominal input of 300V.
Full brick, through-hole mounting.
-10°C to 85°C.
Based on the datasheet, the VI-200 series is non-RoHS compliant. The RoHS-compliant variant is the VE-200 series.
Overcurrent (OCP), overtemperature (OTP), overvoltage (OVP), and short-circuit (SCP) protection.
