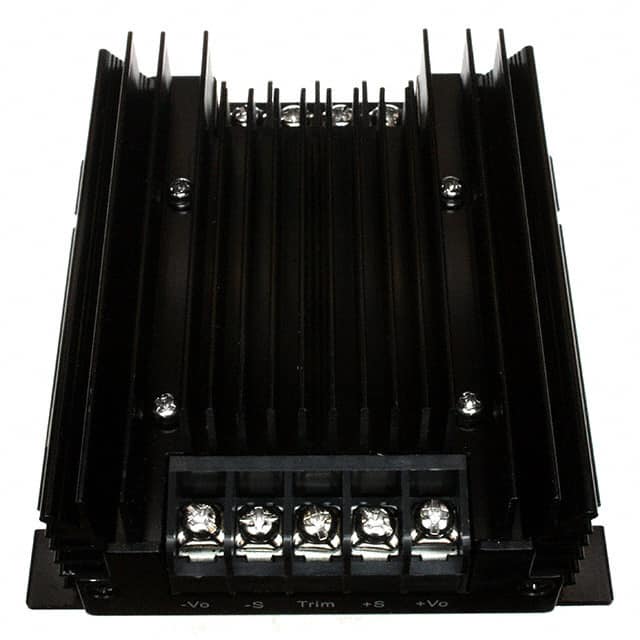

The CUI Inc. VHK100W-Q48-S24 is an enclosed DC-DC converter designed for robust power applications. It offers a single 24 Vdc output at 4.17A, delivering up to 100W of power. The converter operates with a wide 18-75 Vdc input voltage range, accommodating various power sources.
Key electrical specifications include an efficiency of up to 87%, ±0.2% line and load regulation, and ±1.5% voltage accuracy. It provides 1,500 Vdc isolation and includes protections for over current, over temperature, over voltage, and short circuit.
Designed for easy integration, this unit features a chassis mount type and a rugged metal enclosure with an integrated heat sink. The operating temperature range is -40°C to 85°C, making it suitable for demanding environments. The dimensions are 107.5mm x 101.8mm x 38.0mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 24 Vdc.
The maximum output current is 4.17A.
The maximum power output is 100W.
The input voltage range is 18 to 75 Vdc.
The operating temperature range is -40°C to 85°C.
It is chassis mounted.
