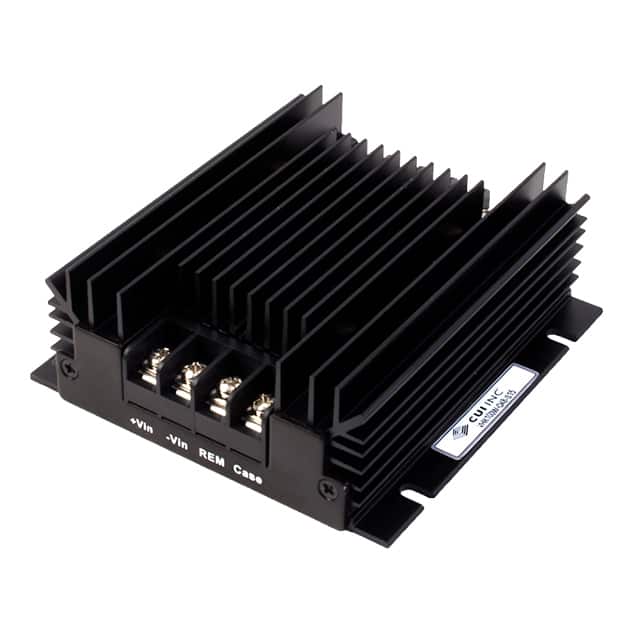

The CUI Inc. VHK100W-Q48-S15 is an enclosed DC-DC converter designed for robust power applications. It offers a single 15V output with a maximum current of 6.7A, delivering up to 100W of power.
This converter operates within a wide 4:1 input voltage range of 18Vdc to 75Vdc, making it versatile for various power sources. Key electrical specifications include a typical efficiency of 86.5%, line regulation of ±0.2%, and load regulation of ±0.2%. It also provides 1,500 Vdc isolation.
The unit is built with a rugged metal enclosure and an integrated heat sink, suitable for chassis mounting. Its operating temperature range is -40°C to 85°C, ensuring reliability in demanding environments. Protections include continuous short circuit protection, over current protection (110-140% of nominal output current), and over voltage protection (115-140%).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 15 Vdc.
The maximum output power is 100 W.
The input voltage range is 18 to 75 Vdc.
The typical efficiency is 86.5%.
The operating temperature range is -40°C to 85°C.
Yes, it has continuous short circuit protection.
