| Category | |
| Manufacturer Name | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

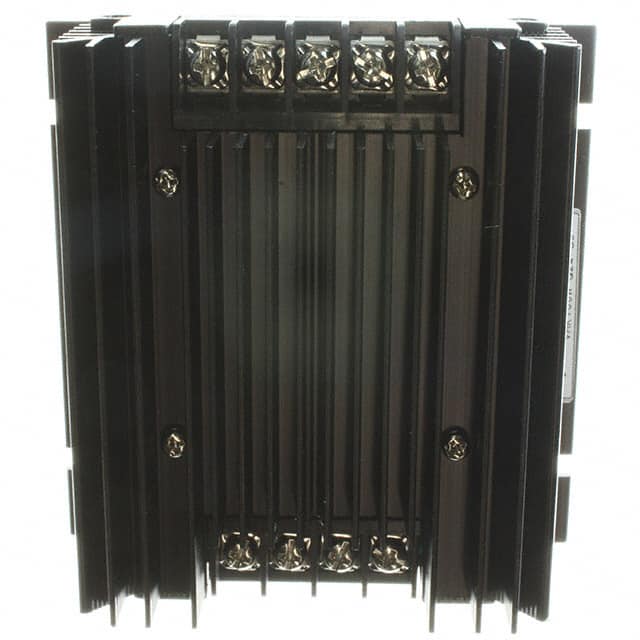

The CUI Inc. VHK100W-Q24-S5 is a robust, enclosed DC-DC converter designed for reliable power conversion in demanding applications. It provides a single 5V output with a maximum current of 20A, resulting in a total output power of 100W.
This converter operates with a wide 4:1 input voltage range of 9-36 Vdc, making it versatile for various power sources. It boasts an efficiency of up to 82% and features essential protections including over-current, over-temperature, over-voltage, and short-circuit protection. The unit also includes remote on/off control for enhanced system management.
Designed for easy integration, the VHK100W-Q24-S5 features a chassis mount type and a rugged metal enclosure with an integrated heat sink. Its operating temperature range is -40°C to 85°C, ensuring performance in diverse environmental conditions. The converter offers 1,500 Vdc isolation and is compliant with RoHS3 standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The VHK100W-Q24-S5 supports input voltages of 9 to 36 Vdc for 24 Vdc models and 18 to 75 Vdc for 48 Vdc models.
The maximum output current is 20A.
The typical efficiency is 82%.
The maximum isolation voltage is 1,500 Vdc.
It includes continuous short circuit protection, over current protection, and over voltage protection.
-40°C to 85°C.
