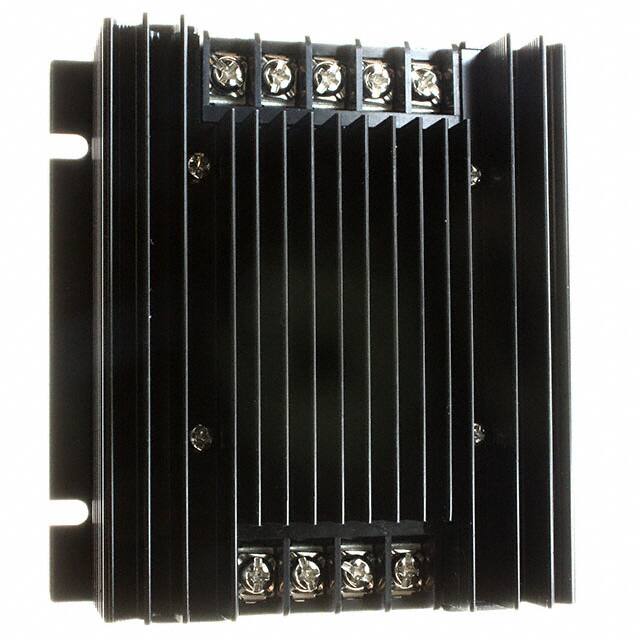

The CUI Inc. VHK100W-Q24-S24 is an enclosed DC-DC converter designed for reliable power conversion. It features a 100W maximum output power and a nominal output voltage of 24Vdc, with a maximum output current of 4.17A.
This converter operates with a wide input voltage range of 9-36Vdc, making it versatile for various power sources. It boasts a high efficiency of up to 85% and provides 1500Vdc isolation. The unit includes protections for over current, over temperature, over voltage, and short circuit.
With a chassis mount type, the VHK100W-Q24-S24 is suitable for integration into systems requiring a robust power solution. Its operating temperature range is -40°C to 85°C, ensuring performance in demanding environments. The dimensions are 107.4mm in length, 101.9mm in width, and 52.6mm in height.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal output voltage is 24 Vdc.
The converter accepts an input voltage range of 9-36 Vdc.
The maximum output current is 4.17 A.
The power rating is 100 W.
The operating temperature range is -40°C to 85°C.
The efficiency is typically 85%.
