| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Frequency | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

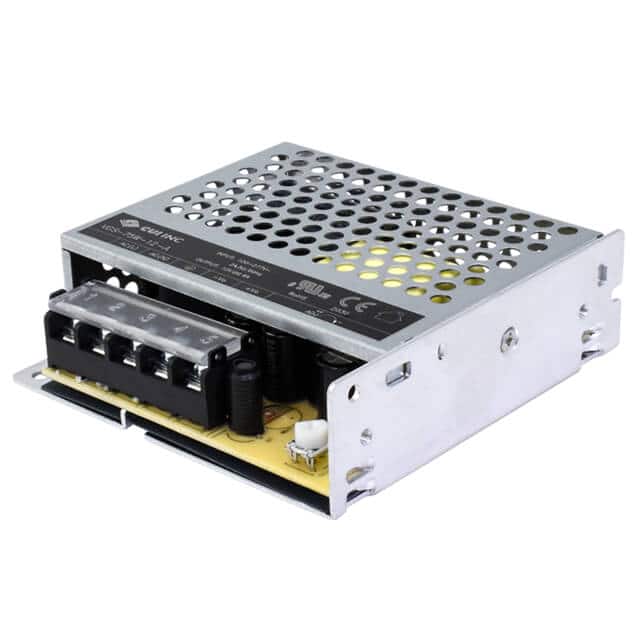

The CUI Inc. VGS-75W-15-A is an enclosed AC-DC power supply designed for various applications, including household appliances and ITE commercial equipment. It delivers a 15V output voltage at a maximum current of 5A, providing a total output power of 75W.
This power supply boasts a wide input voltage range of 85-305 VAC, ensuring flexibility in global applications. It offers high efficiency, reaching up to 87% at 230 VAC, and features essential protections such as short-circuit, over-current, and over-voltage protection for reliable operation. The unit is designed to meet stringent safety standards, including UL/EN/IEC 62368 and IEC/EN 61558.
With a chassis mount type, the VGS-75W-15-A is suitable for integration into various systems. Its operating temperature range is -30°C to 70°C with derating. The power supply also complies with CISPR/EN55032 Class B emissions standards.
The output voltage is 15 Vdc.
The maximum output current is 5 A.
The maximum output power is 75W.
The AC input voltage range is 85 to 305 VAC, and the DC input voltage range is 120 to 430 VDC.
The typical efficiency is 87% at 230 VAC.
The operating temperature range is -30°C to 70°C, with derating.
It is certified to UL/EN/IEC 62368-1 and designed to meet IEC/EN 60335-1.
