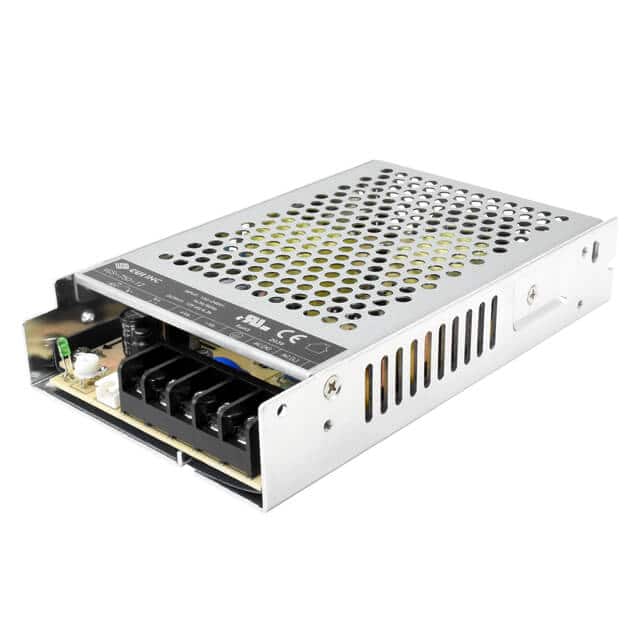

The CUI Inc. VGS-75D-24-B is an enclosed AC-DC power supply designed for chassis mounting. It provides a nominal output voltage of 24Vdc with a maximum current of 3.2A, resulting in a total output power of 77W. This model is conformal coated for added protection.
Key electrical specifications include an input voltage range of 85-264 Vac and an input frequency of 47-63 Hz. The power supply boasts an efficiency of 87% and features active Power Factor Correction (PFC) with a typical power factor of 0.98 at 115 Vac and 0.93 at 230 Vac. It includes essential protections such as over-voltage, over-current, over-temperature, and short-circuit protection.
The operating temperature range is -25°C to 70°C with derating. The unit is certified to IEC/EN/UL 62368 standards and designed to meet IEC/EN 61558, IEC/EN 60335, and GB4943. Applications include Household Appliances and ITE (Commercial) equipment. The dimensions are 159.0mm x 97.0mm x 30.0mm.
The output voltage is 24 Vdc.
The maximum output current is 3.2 A.
The maximum power output is 77W.
The operating temperature range is -25°C to 70°C.
Yes, it features active Power Factor Correction (PFC).
The dimensions are 159.0mm x 97.0mm x 30.0mm.
