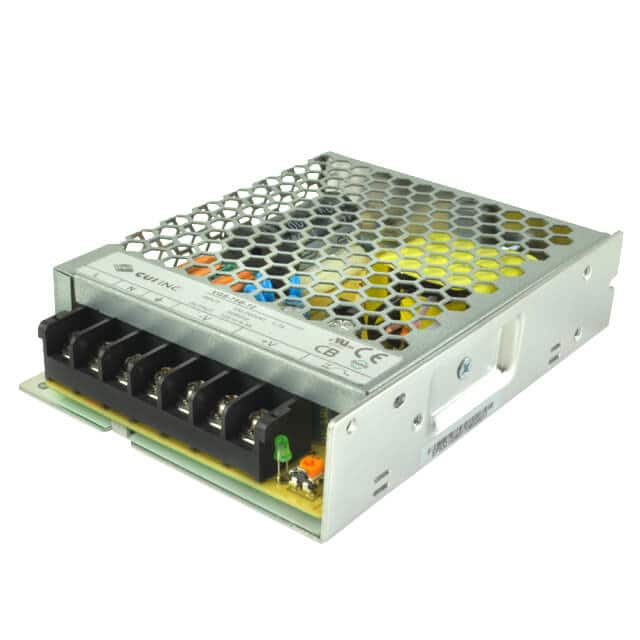

The CUI Inc. VGS-75B-24 is a versatile AC-DC power supply designed for various applications. It offers a nominal output voltage of 24Vdc with a maximum current of 3.2A, resulting in a total output power of 76.8W. The unit operates within a wide input voltage range of 90-264 Vac and features a switching frequency of 65 kHz.
Key electrical specifications include line and load regulation of ±0.5% for most models, and an output adjustability of ±10% via a built-in trim pot. Protections include over-voltage, over-current, and short-circuit protection with auto-recovery. The efficiency is rated at 88% at full load and 230 Vac input.
Designed for ease of integration, this power supply features a chassis mount type and screw terminal interface. It operates within an ambient temperature range of -20°C to 70°C with derating. Safety and compliance certifications include UL, TUV, CB Scheme, and EN standards, meeting Class B emissions for conducted and radiated disturbances.
The VGS-75B-24 provides a nominal output voltage of 24 Vdc.
The maximum output current for the VGS-75B-24 is 3.2 A.
The VGS-75B-24 delivers a maximum output power of 76.8 W.
The VGS-75B-24 accepts an input voltage range of 90 to 264 Vac.
The operating temperature range is -20°C to 70°C, with derating applied.
Yes, the VGS-75B-24 features over-current protection with auto-recovery, active between 110-150% of rated output.
The VGS-75B-24 complies with standards including EN 60950-1, IEC 61000-3-2, IEC 61000-3-3, CISPR 22 Class B, and EN 55032 Class B.
