VGS-50W-15-A

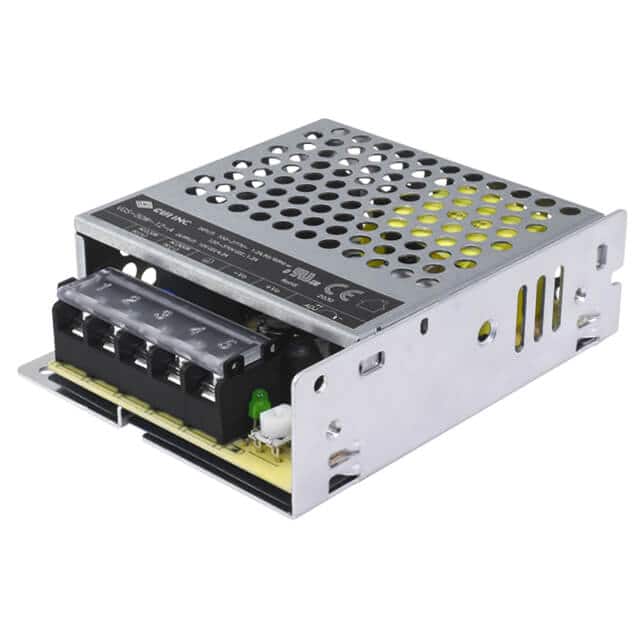

The CUI Inc. VGS-50W-15-A is an internal AC-DC power supply designed for reliable power conversion. It provides a stable 15VDC output with a maximum current of 3.4A, resulting in a total output power of 51W. This unit operates with a wide AC input voltage range from 85 to 305 VAC, ensuring flexibility in various power environments.

Designed for easy integration, the VGS-50W-15-A features a chassis mount type and an enclosed package. It boasts an efficiency of up to 87% at 230 Vac and includes essential protections such as short-circuit, over-current, and over-voltage protection. The power supply is certified to UL/EN/IEC 62368 standards and designed to meet IEC/EN 61558 and IEC/EN 60335 system requirements, making it suitable for applications in ITE (Commercial) and household appliances.

Key electrical specifications include a line regulation of ±0.5% and load regulation of ±0.5% for outputs other than 5V. It operates within a temperature range of -30°C to 70°C with derating. The isolation voltage ratings are 2000Vac (input to ground), 4000Vac (input to output), and 1250Vac (output to ground).

Compliance includes CISPR/EN55032 Class B for radiated and conducted emissions, along with various IEC/EN 61000-4 standards for ESD, radiated immunity, and EFT/burst. This power supply is an ideal choice for applications requiring robust and certified power conversion.
