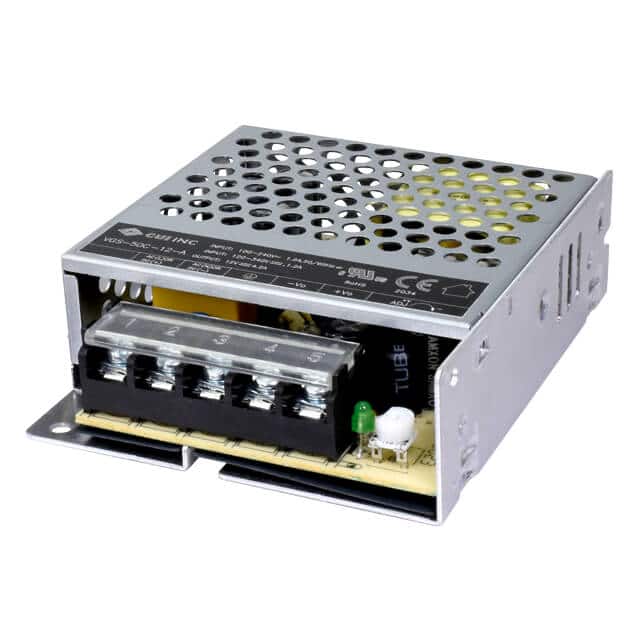

The CUI Inc. VGS-50C-36-A is an enclosed AC-DC power supply designed for versatile applications. It offers a stable 36V DC output with a maximum current of 1.45A, providing a total power output of 52W. The unit boasts a high efficiency of 89% and features a universal input range of 85-264 VAC.
Designed for reliability, this power supply includes protections such as short-circuit, over-current, and over-voltage. It meets stringent safety and compliance standards including UL/EN/IEC 62368 and is designed to meet IEC/EN 61558 and IEC/EN 60335 requirements. The VGS-50C-36-A is suitable for ITE (Commercial) and household appliance applications.
With its compact dimensions of 99.0mm x 82.0mm x 30.0mm, it is designed for chassis mounting, making integration into various systems straightforward. The operating temperature range is -30°C to 70°C with derating, ensuring performance in diverse environmental conditions.
The output voltage is 36 Vdc.
The maximum output current is 1.45 A.
The maximum power output is 52 W.
The typical efficiency is 89 %.
The operating temperature range is -30°C to 70°C (With Derating).
It is certified to 62368: IEC/EN/UL and designed to meet 60335: IEC/EN and 61558: IEC/EN.
It uses chassis mount.
