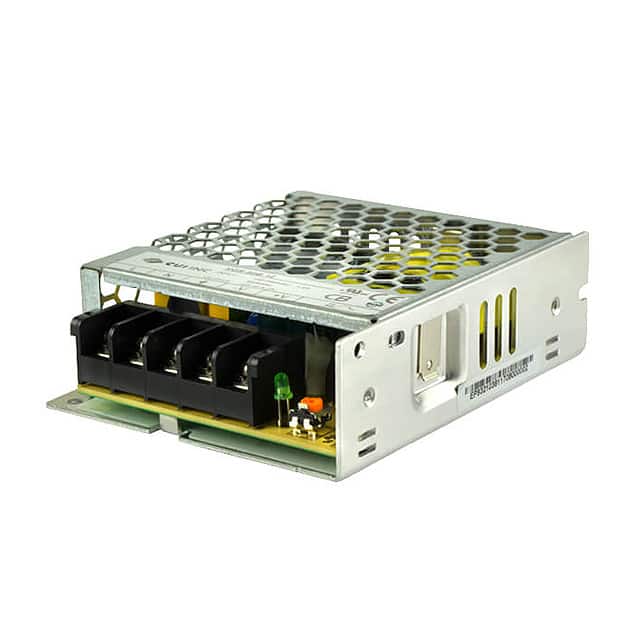

The CUI Inc. VGS-50B-12 is a 50W AC-DC power supply designed for enclosed applications. It delivers a stable 12V output at a maximum current of 4.2A.
This power supply operates with a universal input voltage range of 90-264 Vac and features high efficiency up to 85%. Key electrical specifications include line and load regulation of ±1% for the 12V model, with an adjustable output trim of ±10%. Protections include over-voltage, over-current, and short-circuit protection with auto-recovery.
The VGS-50B-12 is designed for chassis mounting and has dimensions of 99.0mm x 82.0mm x 30.0mm. It operates within a temperature range of -20°C to 70°C with derating. Safety and compliance certifications include CB Scheme, EN, FCC, IEC, SIQ, TUV, and UL, meeting standards for conducted and radiated emissions.
This power supply is suitable for various ITE (Commercial) applications requiring a reliable and efficient power source.
The VGS-50B-12 power supply has an output voltage of 12 Vdc.
The maximum output current for the VGS-50B-12 is 4.2 A.
The VGS-50B-12 has a power rating of 50.4 W.
The VGS-50B-12 accepts an input voltage range of 90 to 264 Vac.
The operating temperature range for the VGS-50B-12 is -20°C to 70°C, with derating.
The dimensions of the VGS-50B-12 are 99.0mm in length, 82.0mm in width, and 30.0mm in height.
The VGS-50B-12 complies with safety standards including EN 60950-1, UL 60950-1, and others listed under its safety approvals.
