| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Frequency | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

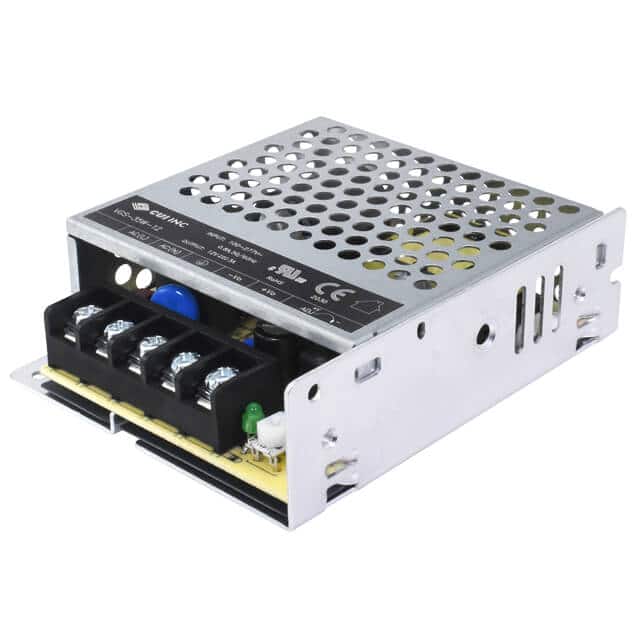

The CUI Inc. VGS-35W-5-B is an internal AC-DC power supply designed for various applications. It provides a stable 5V output voltage with a maximum current of 7.0A, delivering up to 35W of power. The unit operates with a wide input voltage range of 85 to 305 VAC, ensuring flexibility in different power environments.
Key electrical specifications include a typical efficiency of 81% at 230 Vac, line regulation of ±0.5%, and load regulation of ±1% for the 5V output. Protections such as short-circuit, over-current, and over-voltage are integrated for enhanced reliability. The power supply is certified to UL/EN/IEC 62368 standards and designed to meet IEC/EN 61558 and IEC/EN 60335 system requirements.
With a compact chassis mount design, the VGS-35W-5-B measures 99.0mm in length, 82.0mm in width, and 30.0mm in height. It operates within a temperature range of -30°C to 70°C with derating. The unit also meets CISPR/EN55032 Class B emissions standards, making it suitable for ITE (Commercial) and household appliance applications.
The output voltage is 5 Vdc.
The maximum output current is 7.0 A.
The maximum output power is 35W.
The input voltage range is 85 to 305 VAC.
The typical efficiency is 81% measured at 230 Vac.
The operating temperature range is -30°C to 70°C with derating.
It is certified to UL/EN/IEC 62368 and designed to meet IEC/EN 61558 and IEC/EN 60335.
