| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Frequency | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

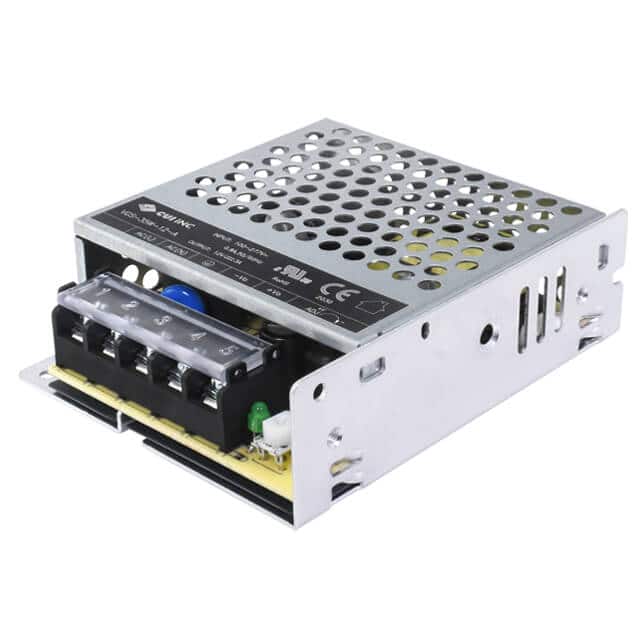

The CUI Inc. VGS-35W-15-A is a 35W AC-DC power supply designed for enclosed applications. It operates with a wide input voltage range of 85 to 305 VAC and provides a stable 15V DC output at up to 2.4A, delivering a total of 36W of power.
This power supply boasts an efficiency of 86% at 230 VAC and includes essential protections such as over-voltage, over-current, and short-circuit protection. It is designed to meet stringent safety standards, including UL/EN/IEC 62368 and IEC/EN 61558, and complies with CISPR/EN55032 Class B emissions.
With a chassis mount type, the VGS-35W-15-A is suitable for integration into various systems. Its dimensions are 99.0mm x 82.0mm x 30.0mm. The operating temperature range is -30°C to 70°C with derating, making it a versatile component for household appliances and ITE commercial applications.
The output voltage is 15 Vdc.
The maximum output current is 2.4 A.
The power rating is 36W.
The input voltage range is 85 to 305 VAC or 120 to 430 VDC.
The typical efficiency is 86% at 230 Vac.
The operating temperature range is -30°C to 70°C (with derating).
It is certified to UL/EN/IEC 62368 and designed to meet IEC/EN 61558 and IEC/EN 60335.
