| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

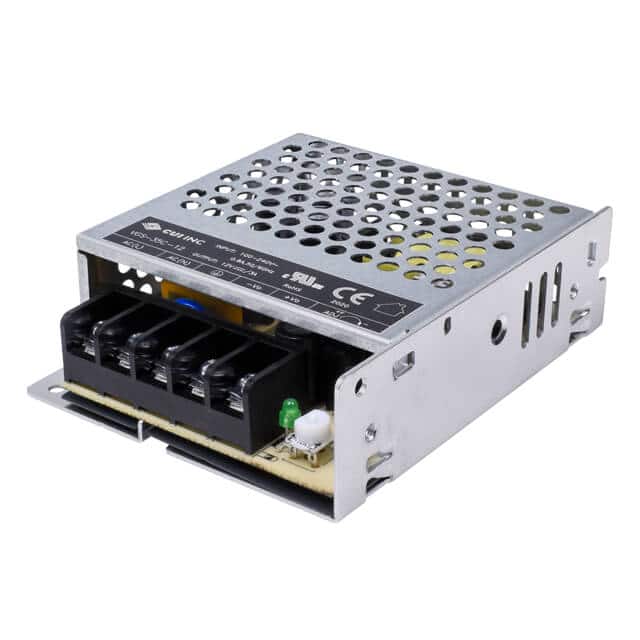

The CUI Inc. VGS-35C-24 is an enclosed AC-DC power supply designed for various applications, including household appliances and ITE commercial equipment. It offers a single 24VDC output with a maximum current of 1.5A, resulting in a total output power of 36W.
This power supply operates with a universal input voltage range of 85 to 264 VAC and boasts a typical efficiency of 88% at 230 Vac. Key electrical features include line and load regulation of ±0.5%, over-voltage protection up to 33.6 Vdc, and over-current protection with auto-recovery. It also includes short-circuit protection.
With a chassis mount type, the VGS-35C-24 has dimensions of 99.0mm x 82.0mm x 30.0mm. It is designed to meet stringent safety and compliance standards, including IEC/EN/UL 62368, IEC/EN 60335, and IEC/EN 61558. The operating temperature range is -30°C to 70°C with derating, and it meets CISPR/EN55032 Class B emissions standards.
The VGS-35C-24 provides a 24 Vdc output voltage.
The maximum output current is 1.5 A.
The maximum power output is 36W.
The typical efficiency is 88%.
The input voltage range is 85 to 264 Vac.
The dimensions are 99.0mm x 82.0mm x 30.0mm.
The operating temperature range is -30°C to 70°C with derating.
