Mfr Part #:

VGS-350C-5-A

Mfr Name: CUI Inc.

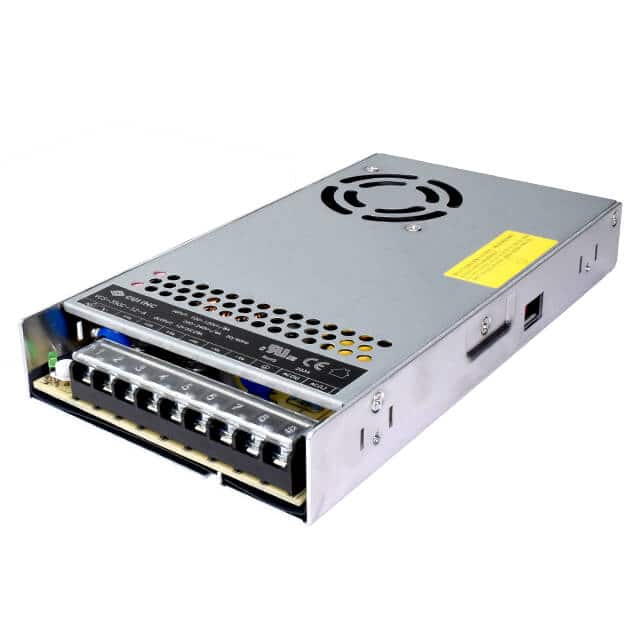

The CUI Inc. VGS-350C-5-A is an enclosed AC-DC converter with a 5VDC output and 350W power rating. It features adjustable output and universal input, designed for chassis mounting.

Stock on Request

VGS-350C-5-A Description

Short technical summary and product information.

The CUI Inc. VGS-350C-5-A is a 350W AC-DC converter providing a single 5VDC output. This enclosed unit is designed for chassis mounting and features adjustable output and universal input capabilities. It operates with an efficiency of 84% and has an operating temperature range of -30°C to 70°C with derating.

Key specifications include a current rating of 60A and an isolation voltage of 3kV. The converter is approved by CE and cURus, meeting standard numbers 60335-1 and 62368-1. Its dimensions are 215.0mm x 115.0mm x 30.0mm.

This AC-DC converter is suitable for applications in household appliances and ITE (Commercial) environments. It is RoHS3 compliant and has an MSL rating of 1 Unlimited.

VGS-350C-5-A Quick Information

Product Type: AC DC Converter

Series: VGS-350C

Canonical Name: CUI Inc. VGS-350C-5-A AC-DC Converter

Subcategory: AC DC Converters

VGS-350C-5-A Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

VGS-350C-5-A Features

Enclosed AC-DC converter with 5VDC output.
350W power rating and 60A current capacity.
Features adjustable output and universal input.
Chassis mount type for easy integration.
Operates from -30°C to 70°C with derating.

VGS-350C-5-A Applications

Suitable for household appliances and ITE equipment.
Used in commercial and industrial power supplies.
Ideal for 5V rail applications requiring up to 60A.
Operates in -30°C to 70°C environments.
Complies with safety standards 60335-1 and 62368-1.

VGS-350C-5-A FAQs

7 frequently asked questions generated from this part’s specifications.

What is the output voltage of the VGS-350C-5-A?

5 VDC.

What is the efficiency of the VGS-350C-5-A?

84%.

What are the dimensions of the VGS-350C-5-A?

215.0 mm x 115.0 mm x 30.0 mm (8.47" x 4.53" x 1.18").

What safety approvals does the VGS-350C-5-A have?

CE, cURus.

What is the output current of the VGS-350C-5-A?

60 A.

What is the operating temperature range of the VGS-350C-5-A?

-30°C to 70°C with derating.

What is the packaging type for the VGS-350C-5-A?

Box.

Category	AC DC Converters
Manufacturer Name	CUI Inc.
Applications	Household Appliances, ITE (Commercial)
Approval Agency	CE, cURus
Current	60 A
Efficiency	84%
Features	Adjustable Output, Universal Input
Height	30.0mm (1.18")
Industrial Grade	Yes
Length	215.0mm (8.47")
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature	-30°C ~ 70°C (With Derating)
Output Voltage	5 VDC
Power	350 W
Power (Watts)	300W
Standard Number	60335-1; 62368-1
Type	Enclosed
Voltage	3 kV
Width	115.0mm (4.53")
