| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

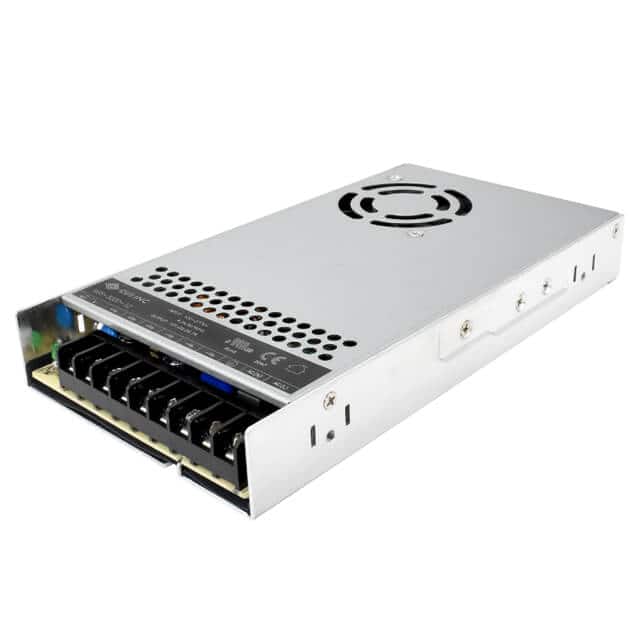

The CUI Inc. VGS-320D-12 is an enclosed AC-DC power supply designed for ITE (Commercial) applications. It delivers a continuous output power of 320W with a nominal output voltage of 12V and a maximum output current of 26.7A.
This power supply operates with a wide AC input voltage range of 85 to 305 Vac and features active Power Factor Correction (PFC). It boasts a typical efficiency of 86.5% at full load and 230 Vac input. The unit includes comprehensive protections such as over-voltage, over-current, over-temperature, and short-circuit protection.
Designed for chassis mounting, the VGS-320D-12 has dimensions of 215.0mm x 115.0mm x 30.0mm. It is certified to IEC/EN/UL 62368 standards and designed to meet IEC/EN 61558 and GB4943.
Key electrical specifications include a line regulation of ±0.3% and a load regulation of ±0.5% for models other than the 5Vdc output. The operating temperature range is -30°C to 70°C with derating.
The VGS-320D-12 has a nominal output voltage of 12 Vdc, with an adjustable range of 10.0 to 13.2 Vdc.
The maximum output current for the VGS-320D-12 is 26.7 A.
The VGS-320D-12 provides a maximum output power of 320.4 W.
The typical efficiency for the VGS-320D-12 is 86.5% when measured at 230 Vac.
The operating temperature range for the VGS-320D-12 is -30°C to 70°C, with derating applied.
The VGS-320D-12 is certified to IEC/EN/UL 62368 and designed to meet IEC/EN 61558 and GB4943.
