| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

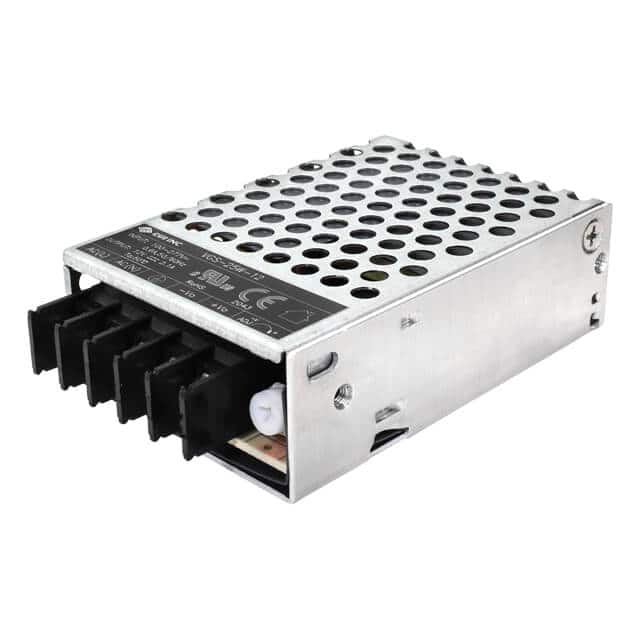

The CUI Inc. VGS-25W-12 is an enclosed AC-DC power supply designed for industrial and commercial applications. It provides a stable 12V DC output with a maximum current of 2.1A, delivering up to 25W of power.
Key electrical specifications include a wide AC input voltage range of 85 to 305 Vac and a broad operating temperature range from -30°C to 70°C with derating. The unit boasts a typical efficiency of 85% at 230 Vac and features protections such as over-current, over-voltage, and short-circuit.
Designed for easy integration, this power supply utilizes a chassis mount and has dimensions of 80.0mm x 55.0mm x 25.0mm. It is certified to UL/EN/IEC 62368 standards, ensuring safety and reliability for ITE (Commercial) applications.
Additional features include a 4kV isolation voltage (input to output) and compliance with CISPR/EN55032 Class B emissions standards. The VGS-25W-12 is suitable for various power conversion needs where a reliable and certified enclosed power supply is required.
The VGS-25W-12 has a nominal output voltage of 12 Vdc.
The maximum output current for the VGS-25W-12 is 2.1 A.
The VGS-25W-12 provides a maximum output power of 25W.
The VGS-25W-12 accepts a wide AC input voltage range from 85 Vac to 305 Vac.
The typical efficiency of the VGS-25W-12 is 85% when measured at 230 Vac.
The VGS-25W-12 can operate within a temperature range of -30°C to 70°C, with derating applied.
The VGS-25W-12 is certified to UL/EN/IEC 62368 standards.
