| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Voltage Range | |
| Width |

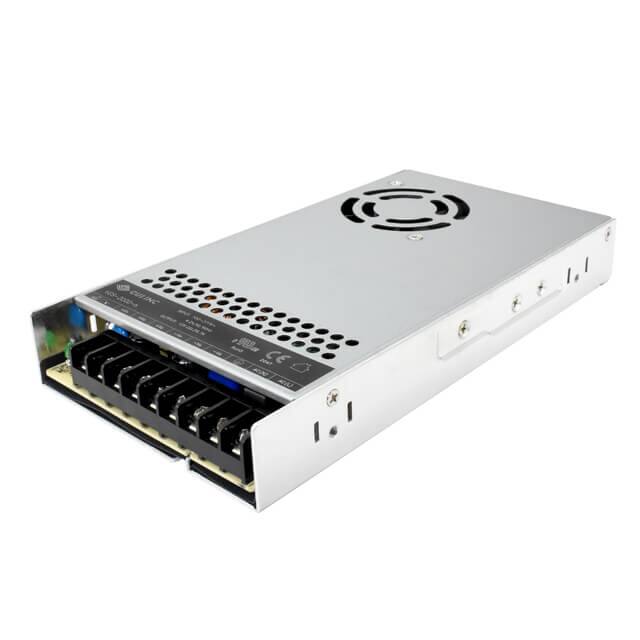

The CUI Inc. VGS-200D-5-B is an enclosed AC-DC power supply designed for reliable power conversion. It offers a 5V output voltage with a maximum current of 40A, delivering up to 200W of power.
Key features include a wide input voltage range of 85-305 VAC and active Power Factor Correction (PFC), contributing to its high efficiency of 85% at 230 VAC. The unit is certified to IEC/EN/UL 62368 standards and designed to meet IEC/EN 60335 and GB4943, making it suitable for various applications.
This power supply is available with conformal coating and has a terminal cover option. It includes comprehensive protection features such as over-voltage, over-current, over-temperature, and short-circuit protection. The VGS-200D-5-B meets CISPR/EN55032 Class B radiated and conducted emissions standards.
With its robust design and compliance certifications, the VGS-200D-5-B is well-suited for applications in household appliances and Information Technology Equipment (ITE). It is designed for chassis mounting and operates within a temperature range of -30°C to 70°C with derating.
The nominal output voltage is 5 Vdc.
The maximum output current is 40.0 A.
The maximum output power is 200.0 W.
The typical efficiency is 85%.
The operating temperature range is -30°C to 70°C (With Derating).
It is certified to IEC/EN/UL 62368 and designed to meet IEC/EN 60335 and GB4943.
It complies with CISPR/EN55032 Class B for radiated and conducted emissions.
