| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

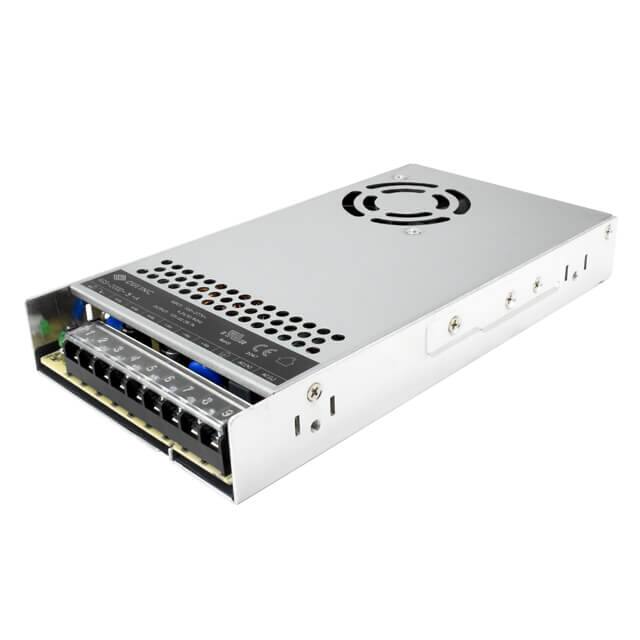

The CUI Inc. VGS-200D-5-A is an enclosed AC-DC power supply designed for various applications, including household appliances and ITE commercial equipment. It delivers a stable 5V output voltage at a maximum current of 40A, providing a total output power of 200W.
Key features include a wide AC input voltage range of 85-305 VAC and active Power Factor Correction (PFC). The unit is certified to IEC/EN/UL 62368 standards and designed to meet IEC/EN 60335 and GB4943. It offers comprehensive protection features such as over-voltage, over-current, short-circuit, and over-temperature protection.
With a chassis mount type, this power supply measures 215.0mm in length, 115.0mm in width, and 30.0mm in height. It operates within a temperature range of -30°C to 70°C with derating and boasts an efficiency of 85% at 230 Vac.
The VGS-200D-5-A provides a 5Vdc output voltage and a maximum output current of 40.0A.
The VGS-200D-5-A accepts an AC input voltage range of 85 to 305 VAC.
The VGS-200D-5-A has a maximum output power of 200.0W.
The VGS-200D-5-A is certified to IEC/EN/UL 62368 and designed to meet IEC/EN 60335 and GB4943.
The operating temperature range for the VGS-200D-5-A is -30°C to 70°C, with derating.
