| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Voltage Range | |
| Width |

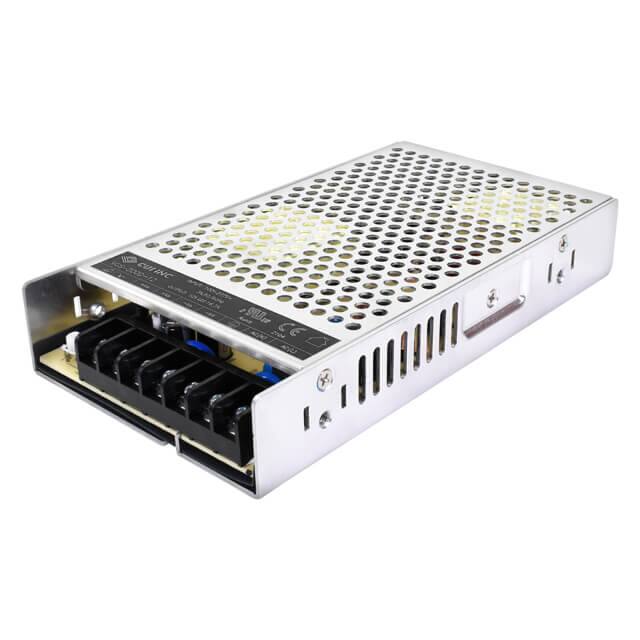

The CUI Inc. VGS-200D-12-B is an enclosed AC-DC power supply designed for various applications, including household appliances and ITE commercial equipment. It provides a stable 12V output at 16.7A, delivering up to 200.4W of power.
Key electrical specifications include a wide input voltage range of 85-305 VAC, an efficiency rating of 88% at 230 VAC, and active Power Factor Correction (PFC). The unit offers comprehensive protection features such as over-voltage, over-current, short-circuit, and over-temperature protection.
With a chassis mount type, this power supply is suitable for integration into various systems. Its dimensions are 179.0mm x 99.0mm x 30.0mm. The VGS-200D series is certified to IEC/EN/UL 62368 standards and designed to meet IEC/EN 60335 and GB4943.
The nominal output voltage is 12Vdc.
The maximum output current is 16.7A.
The maximum output power is 200.4W.
The typical efficiency is 88%.
The AC input voltage range is 85-305 VAC.
It is certified to IEC/EN/UL 62368 and designed to meet IEC/EN 60335 and GB4943.
The operating temperature range is -30°C to 70°C with derating.
