| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

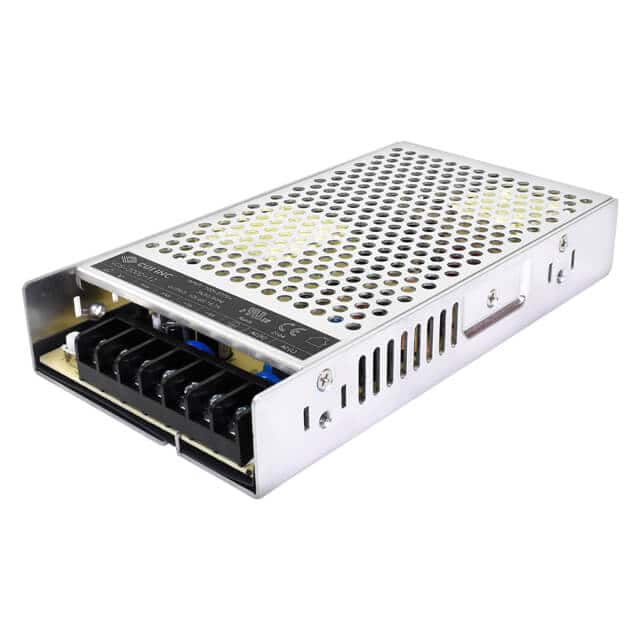

The CUI Inc. VGS-200D-12 is an enclosed AC-DC power supply designed for various applications. It delivers a nominal output voltage of 12V and a maximum output current of 16.7A, providing up to 200.4W of power.
Key electrical specifications include a wide AC input voltage range of 85-305 VAC and a frequency range of 47-63 Hz. The converter boasts active Power Factor Correction (PFC) with a typical power factor of 0.98 at 115 VAC and 0.95 at 230 VAC. Efficiency is rated at a typical 88% at 230 VAC.
Protective features include over-current, over-voltage, short-circuit, and over-temperature protection. The unit is certified to IEC/EN/UL 62368 standards and designed to meet IEC/EN 60335 and GB4943. It operates within a temperature range of -30°C to 70°C with derating.
Mechanically, this power supply is designed for chassis mounting and has dimensions of 179.0mm x 99.0mm x 30.0mm. It is suitable for applications in ITE (Commercial) and Household Appliances.
The converter accepts AC input from 85 to 305 Vac (47-63 Hz) and DC input from 120 to 430 Vdc.
Nominal output is 12 Vdc with a maximum current of 16.7 A and a maximum power of 200.4 W. Output voltage is adjustable between 11.4 Vdc and 12.6 Vdc.
The operating temperature range is -30°C to 70°C with derating required at higher ambient temperatures.
The converter measures 179.0 mm (L) x 99.0 mm (W) x 30.0 mm (H) and is designed for chassis mounting with an enclosed case.
Protections include over current (105-200% auto recovery), over voltage (latching shut down at 16.2 Vdc), short circuit (continuous auto-recovery hiccup), and over temperature (deactivation at 85°C).
The typical efficiency is 88% at 230 Vac full load.
It complies with IEC/EN/UL 62368-1, 60335-1, and GB4943 standards, and meets CISPR32/EN55032 Class B emissions.
