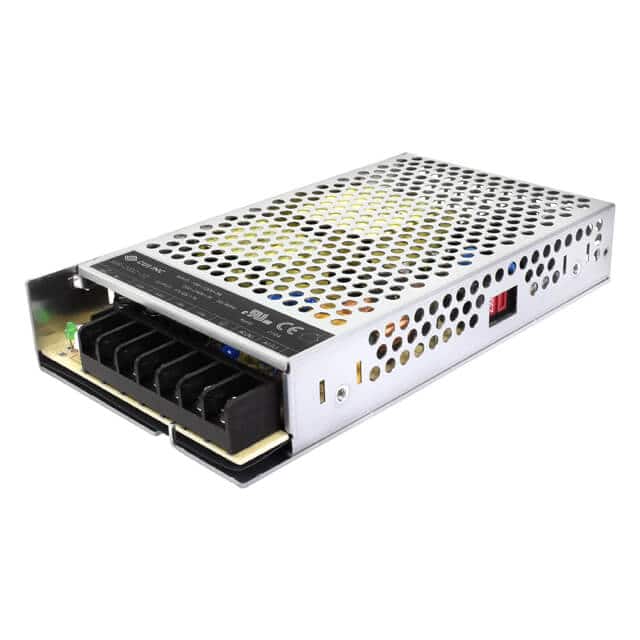

VGS-200C-12-B The CUI Inc. VGS-200C-12-B is an enclosed AC-DC power supply with a 12V output voltage and 204W maximum power. It offers adjustable output and universal input capabilities.
Mfr Part #:

VGS-200C-12-B

Mfr Name: CUI Inc.
CUI Inc.
The CUI Inc. VGS-200C-12-B is an enclosed AC-DC power supply with a 12V output voltage and 204W maximum power. It offers adjustable output and universal input capabilities.
Stock on Request

VGS-200C-12-B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Features
Height
Length
Mounting Type
No Load Power Consumption
Number of Outputs
Operating Temperature
Output Current
Output Power
Output Voltage
Power (Watts)
Standard Number
Type
Voltage
Voltage Range
Width
View Similar Products (0)

VGS-200C-12-B Description

Short technical summary and product information.

The CUI Inc. VGS-200C-12-B is a 204W AC-DC power supply designed for various applications. It features a 12V output voltage with a range of 10.2V to 13.8V and a maximum output current of 17.0A.



This power supply boasts an efficiency of 87.5% at 230 Vac input and includes protections such as short-circuit, over-current, over-voltage, and over-temperature. The output voltage is adjustable via a trimpot with +/- 10% capability. It operates within an input voltage range of 90-264 Vac or 240-373 Vdc.



With a chassis mount type and an enclosed, conformal coated enclosure, the VGS-200C-12-B is suitable for industrial and commercial applications. Its dimensions are 179.0mm x 99.0mm x 30.0mm, and it operates within a temperature range of -30°C to 70°C with derating. Safety approvals include CE and cURus, and it is certified to IEC/EN/UL 62368 standards.

VGS-200C-12-B Quick Information

Product Type: AC DC Converters
Series: VGS-200C
Canonical Name: CUI Inc. VGS-200C Series AC-DC Power Supply
Subcategory: AC DC Converters

VGS-200C-12-B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

VGS-200C-12-B Features

  • 12V output voltage, 204W maximum power.
  • 87.5% typical efficiency at 230 Vac.
  • Adjustable output voltage via trimpot.
  • Universal AC input voltage range.
  • Chassis mount, enclosed, conformal coated.

VGS-200C-12-B Applications

  • Suitable for household appliances.
  • Designed for ITE commercial applications.
  • Provides stable power conversion.
  • Meets safety and compliance standards.

VGS-200C-12-B FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage of the VGS-200C-12-B?

The VGS-200C-12-B has a nominal output voltage of 12 Vdc, with a range of 10.2 Vdc to 13.8 Vdc.

What is the maximum output power for the VGS-200C-12-B?

The maximum output power for the VGS-200C-12-B is 204 W.

What is the typical efficiency of the VGS-200C-12-B?

The typical efficiency of the VGS-200C-12-B is 87.5% when measured at 230 Vac input.

What are the input voltage ranges for the VGS-200C-12-B?

The VGS-200C-12-B accepts AC input voltages from 90-132 Vac (low range) and 180-264 Vac (high range), and DC input voltages from 240-373 Vdc.

What protections are included in the VGS-200C-12-B?

The VGS-200C-12-B includes short-circuit protection (continuous, auto recovery, hiccup), over-current protection (110-185%), over-voltage protection (latching shutdown for 12V model at 18.0 Vdc), and over-temperature protection (latching).

What are the dimensions of the VGS-200C-12-B?

The dimensions of the VGS-200C-12-B are 179.0mm in length, 99.0mm in width, and 30.0mm in height.

What is the operating temperature range for this AC-DC converter?

The VGS-200C-12-B operates within a temperature range of -30°C to 70°C, with derating applied.
