| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

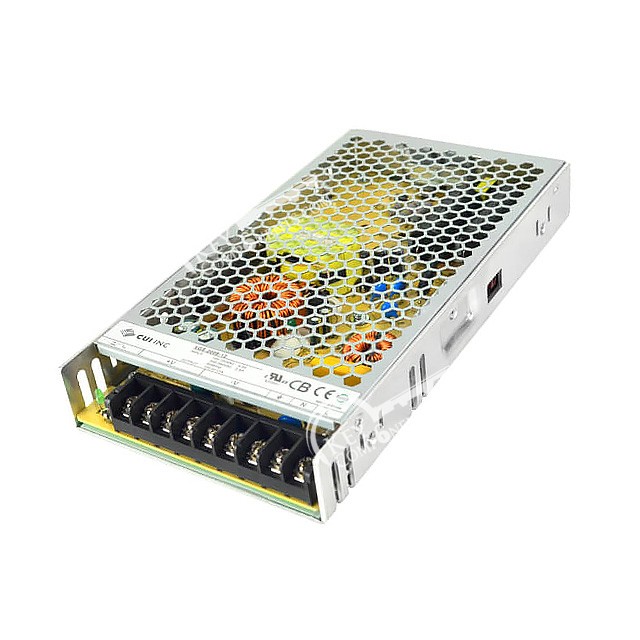

The CUI Inc. VGS-200B-12 is a 204W AC-DC power supply designed for commercial ITE applications. It provides a single 12VDC output with a maximum current of 17A and features adjustable output with a built-in trim pot.
This enclosed power supply operates with an efficiency of 87.5% and has a wide input voltage range of 90-264 VAC. It is designed for chassis mounting and measures 215.0mm x 115.0mm x 30.0mm. The operating temperature range is -20°C to 70°C with derating.
Key electrical specifications include line regulation of ±0.5% and load regulation of ±1% for the 12V model. Protections include over-voltage, over-current, and short-circuit shutdown with auto-recovery. The unit also meets various safety and compliance standards, including EN 55032 Class A for emissions and IEC 61000-4-2 for ESD immunity.
90-264 VAC via input selector switch.
Enclosed chassis mount package.
-20°C to 70°C with derating.
12V DC at 17A maximum, 204W.
Certified to EN 62368 and IEC/UL 60950.
215.0mm x 115.0mm x 30.0mm (8.46" x 4.53" x 1.18").
Conducted and radiated emissions meet EN 55032 Class A; immunity to ESD, radiated fields, and electrical fast transients per IEC 61000-4-2, -4-3, -4-4.
