| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Power (Watts) | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

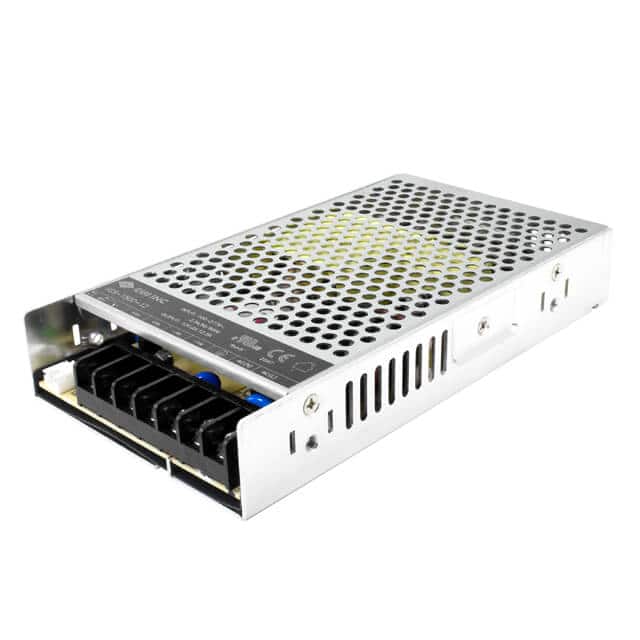

The CUI Inc. VGS-150D-24 is an enclosed AC-DC power supply designed for industrial and commercial applications. It delivers a nominal 24VDC output with a maximum current of 6.3A, providing up to 151.2W of power. The unit operates with a wide AC input range of 85 to 305 VAC and boasts a typical efficiency of 87% at 230 VAC.
Key features include active Power Factor Correction (PFC), adjustable output voltage, and remote on/off control. Protections include over-voltage, over-current, over-temperature, and short-circuit protection. The power supply is certified to IEC/EN/UL 62368 standards and designed to meet IEC/EN 61558, IEC/EN 60335, and GB4943.
With dimensions of 179.0mm x 99.0mm x 30.0mm, it is suitable for chassis mounting. The operating temperature range is -30°C to 70°C with derating. This series is available with conformal coating or terminal cover options and meets CISPR/EN55032 Class B emissions standards.
The VGS-150D-24 provides an adjustable 24 Vdc output.
The maximum output current is 6.3 A.
The maximum output power is 151.2 W.
The typical efficiency is 87% measured at 230 Vac.
The AC input voltage range is 85 to 305 Vac.
The operating temperature range is -30°C to 70°C with derating.
It includes over voltage, over current, over temperature, and short circuit protection.
