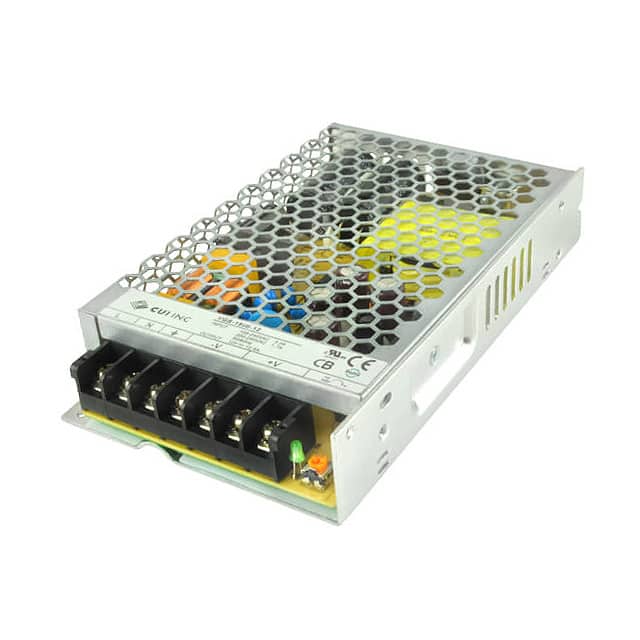

The CUI Inc. VGS-150B-48 is an enclosed AC-DC power supply designed for various applications. It delivers a 48VDC output with a maximum current of 3.2A, providing a total output power of 154W. The unit boasts a high efficiency of 88% and features adjustable output voltage with a ±10% trim.
Input specifications include a wide voltage range from 88-264Vac and a frequency range of 47-63Hz. Protections such as over-voltage, over-current, and short-circuit are integrated for reliability. The power supply operates within a temperature range of -20°C to 70°C with derating.
Designed for chassis mounting, this power supply offers a screw terminal interface for easy integration. It meets various safety and compliance standards, including CB Scheme, EN, FCC, IEC, SIQ, TUV, and UL, with conducted and radiated emissions compliant to Class B standards.
The VGS-150B-48 provides a 48Vdc output voltage.
The maximum output current is 3.2A.
The maximum output power is 154W.
The efficiency is typically 88%.
The operating temperature range is -20°C to 70°C with derating.
This power supply is designed for chassis mounting.
Yes, it features over-current protection with auto recovery.
