| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Frequency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

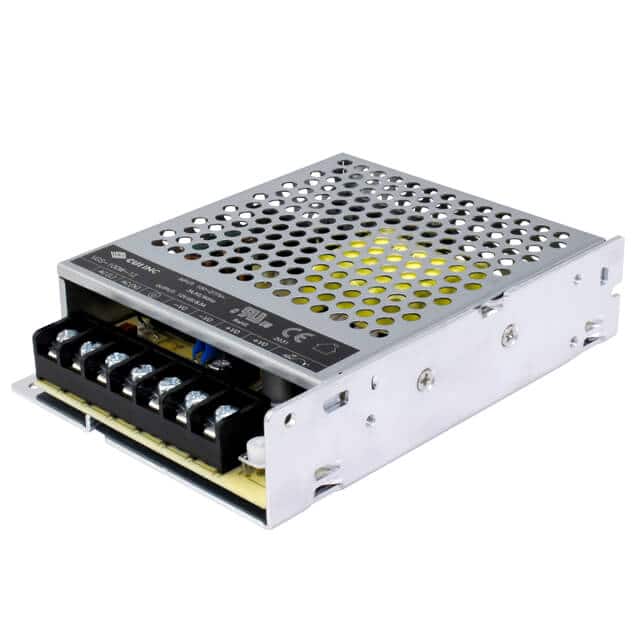

The CUI Inc. VGS-100W-5-B is an internal AC-DC power supply designed for applications requiring a stable 5V output. This unit delivers up to 90W of power with a typical efficiency of 85.5% at 230 Vac input.
It boasts a wide input voltage range of 85 to 305 Vac, making it suitable for global use. The power supply includes essential protections such as short-circuit, over-current, and over-voltage protection. It is designed to meet IEC/EN 61558 and IEC/EN 60335 system requirements and is UL/EN/IEC 62368 certified.
This model features a conformal coating and is designed for chassis mounting. Its compact dimensions (129.0mm x 97.0mm x 30.0mm) facilitate integration into various systems. The operating temperature range is -30°C to 70°C with derating.
Key electrical specifications include a maximum output current of 18A, line regulation of ±0.5%, and load regulation of ±1% for the 5V output. It also offers a hold-up time of 55ms at 230 Vac.
The nominal output voltage is 5 Vdc.
The maximum output current is 18 A.
The maximum output power is 90W.
The typical efficiency is 85.5% when measured at 230 Vac.
The operating temperature range is -30°C to 70°C, with derating.
The dimensions are 129.0mm in length, 97.0mm in width, and 30.0mm in height.
It is UL/EN/IEC 62368 certified and designed to meet IEC/EN 61558 and IEC/EN 60335 system requirements.
