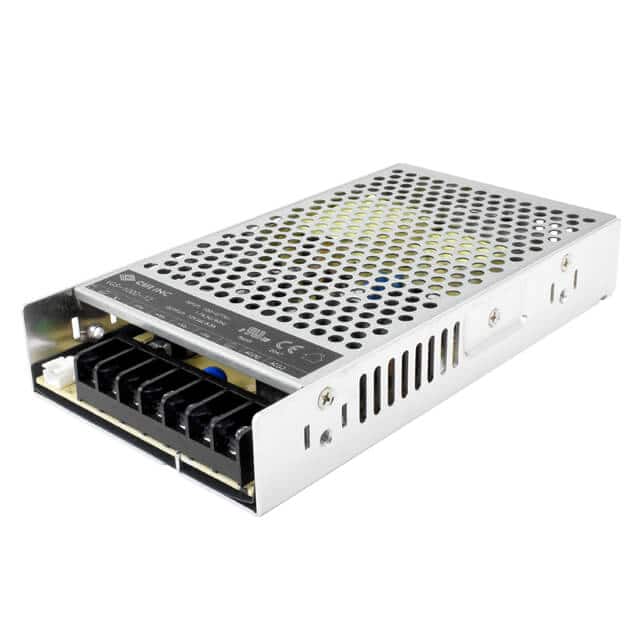

The CUI Inc. VGS-100D-15-B is an internal AC-DC power supply designed for various applications. It provides a nominal output voltage of 15V with a maximum output current of 6.7A, delivering up to 101W of power. The unit features a wide input voltage range of 85-305 VAC and an efficiency of 86% at full load.
This power supply is certified to IEC/EN/UL 62368 and designed to meet IEC/EN 61558, IEC/EN 60335, and GB4943 standards. It includes protections such as over-voltage, over-current, over-temperature, and short-circuit protection. The VGS-100D series also offers CISPR/EN55032 Class B radiated and conducted emissions compliance and input over-voltage category III.
With a compact chassis mount design, the VGS-100D-15-B measures 179.0mm x 99.0mm x 30.0mm. It operates within a temperature range of -30°C to 70°C with derating and is suitable for ITE (Commercial) and Household Appliances applications.
The nominal output voltage is 15 Vdc, with an adjustable range of 14.3 to 16.5 Vdc.
The input voltage range is 85 to 305 Vac for all output models except the 5 Vdc model, which has a maximum of 264 Vac.
The operating temperature range is -30°C to 70°C with derating.
It is certified to IEC/EN/UL 62368 and designed to meet IEC/EN 61558, IEC/EN 60335, and GB4943.
The typical efficiency is 86%.
Yes, it features active PFC with a typical power factor of 0.97 at 115 Vac full load.
It includes over voltage protection (hiccup mode at 20.25 Vdc), over current protection (105% minimum), over temperature protection (activation at 85°C), and short circuit protection (constant current, auto-recovery).
