| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

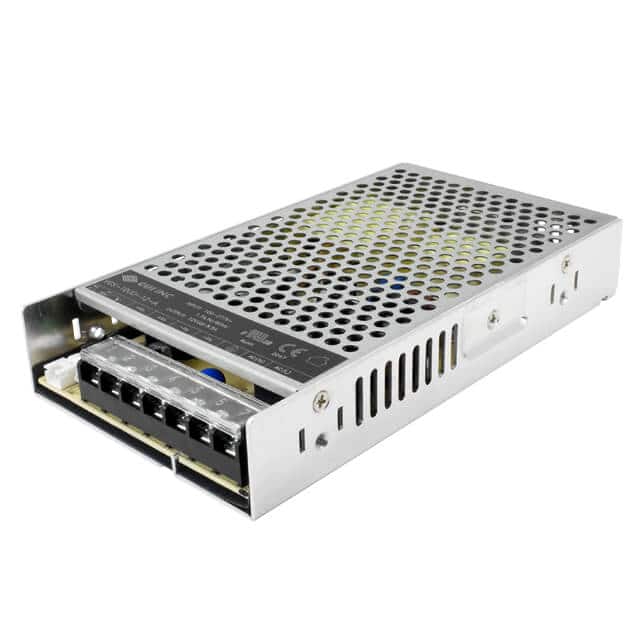

The CUI Inc. VGS-100D-15-A is an internal AC-DC power supply designed for various applications, including ITE (Commercial) and Household Appliances. It provides a stable 15V DC output with a maximum current of 6.7A, delivering up to 101W of power.
This converter operates with a wide input voltage range of 85-305 VAC and features active Power Factor Correction (PFC). It boasts an efficiency of 86% and includes features such as adjustable output, DC input capability, and remote on/off control. The unit is certified to IEC/EN/UL 62368 standards and designed to meet IEC/EN 61558 and IEC/EN 60335.
With a chassis mount type, the VGS-100D-15-A is suitable for integration into various systems. It offers protections including over-voltage, over-current, over-temperature, and short-circuit protection. The operating temperature range is -30°C to 70°C with derating, and it meets CISPR/EN55032 Class B emissions standards.
The output voltage is 15 Vdc.
The maximum output current is 6.7 A.
The maximum output power is 101W.
The efficiency is 86%.
The input voltage range is 85-305 Vac.
The operating temperature range is -30°C to 70°C (With Derating).
The dimensions are 179.0mm (7.05") L x 99.0mm (3.90") W x 30.0mm (1.18") H.
