| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Industrial Grade | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

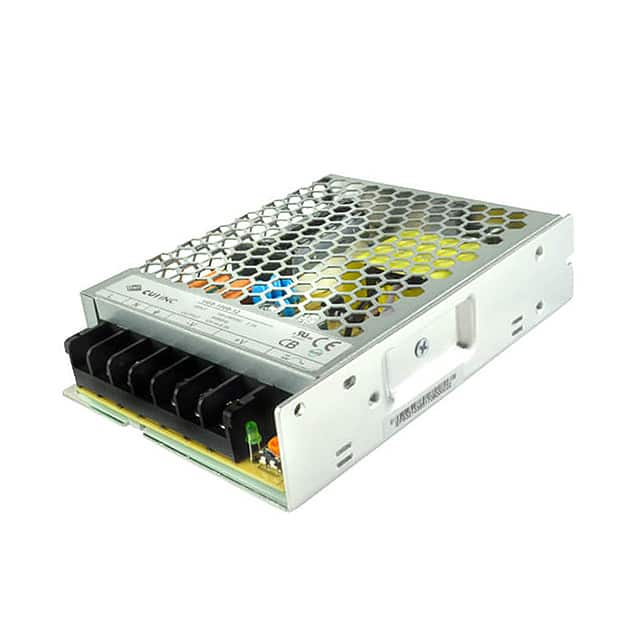

The CUI Inc. VGS-100B-48 is an enclosed AC-DC power supply designed for various applications. It provides a stable 48V DC output at up to 2.1A, delivering a total of 100.8W of power. The unit operates with a universal input voltage range of 90-264 Vac and features a switching frequency of 65 kHz.
Key electrical specifications include line and load regulation of ±0.5%, and adjustable output voltage with a ±10% trim range. Protections include over-voltage, over-current, and short-circuit protection with auto-recovery. The power supply meets safety standards such as 62368 and carries approvals including CE and UL/cUL.
Designed for easy integration, this power supply features a chassis mount type and a metal case package. Its dimensions are 129.0mm x 97.5mm x 30.0mm. The operating temperature range is -20°C to 70°C with derating.
The output voltage is 48 Vdc.
The maximum output current is 2.1 A.
The power rating is 100.8 W.
The input voltage range is 90-264 Vac.
The dimensions are 129.0mm x 97.5mm x 30.0mm.
The operating temperature range is -20°C to 70°C with derating.
Yes, it is RoHS3 Compliant.
