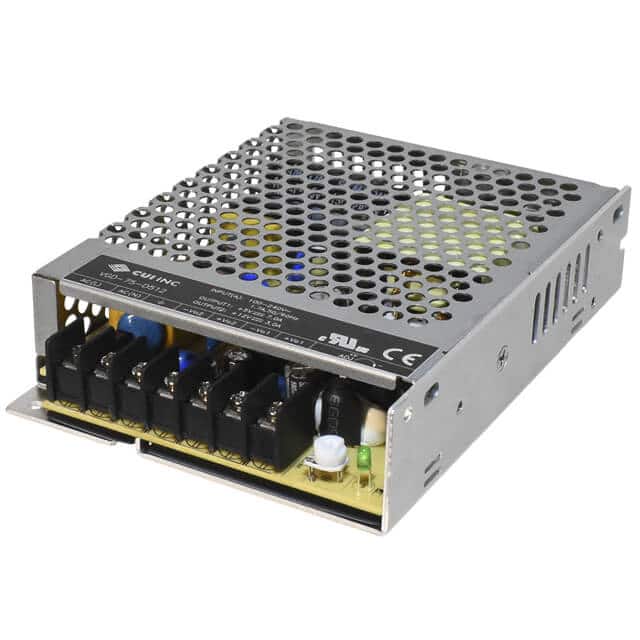

The CUI Inc. VGD-75-D512 is an enclosed AC-DC power supply designed for applications requiring dual, independently isolated outputs. It provides a 5V output with a maximum current of 3A and a 12V output with a maximum current of 0.5A, delivering a total combined power of 71W. The unit features a universal input voltage range of 90-264 Vac and operates with a typical efficiency of 82%.
Designed for reliability, the VGD-75-D512 includes short circuit, over current, and over voltage protections. It meets safety standards such as IEC/EN/UL 62368 and is designed to meet IEC/EN/UL 60335. The converter exhibits Class B EMI performance, complying with CISPR32/EN55032 standards for both conducted and radiated emissions.
Mechanically, this power supply is designed for chassis mounting and has dimensions of 129 x 97 x 30 mm. It utilizes free air convection for cooling and operates within a temperature range of -30°C to 70°C (with derating). The unit is suitable for ITE (Commercial) and Household Appliance applications.
The CUI Inc. VGD-75-D512 provides dual outputs: 5V and 12V.
The VGD-75-D512 has a maximum total combined power output of 71W.
The VGD-75-D512 accepts a universal input voltage range of 90 to 264 Vac.
The typical efficiency of the VGD-75-D512 is 82%.
The VGD-75-D512 uses chassis mount.
The VGD-75-D512 operates within a temperature range of -30°C to 70°C, with derating.
Yes, the VGD-75-D512 features short circuit protection.
